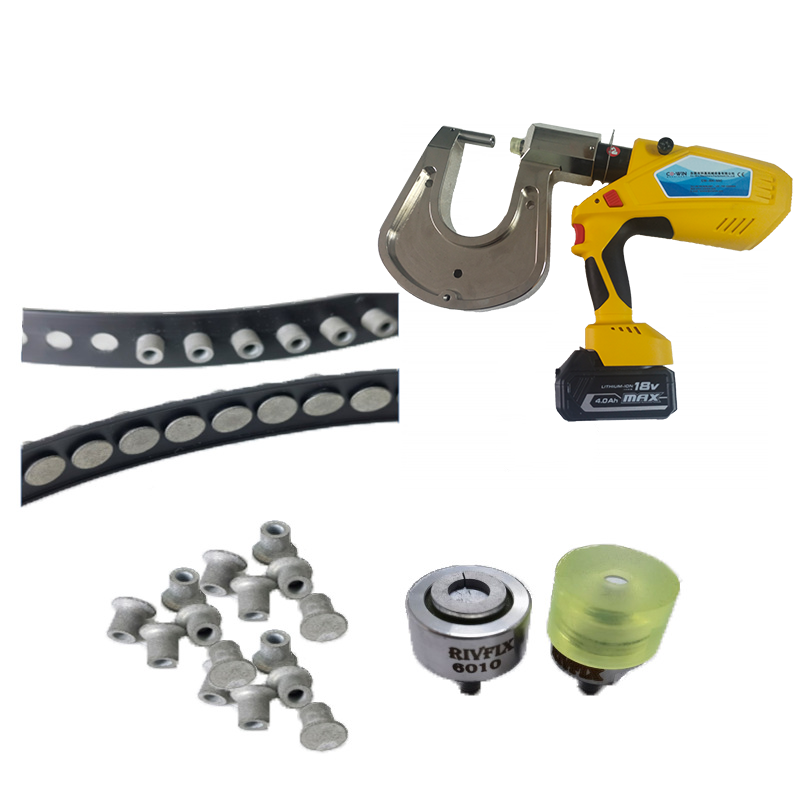

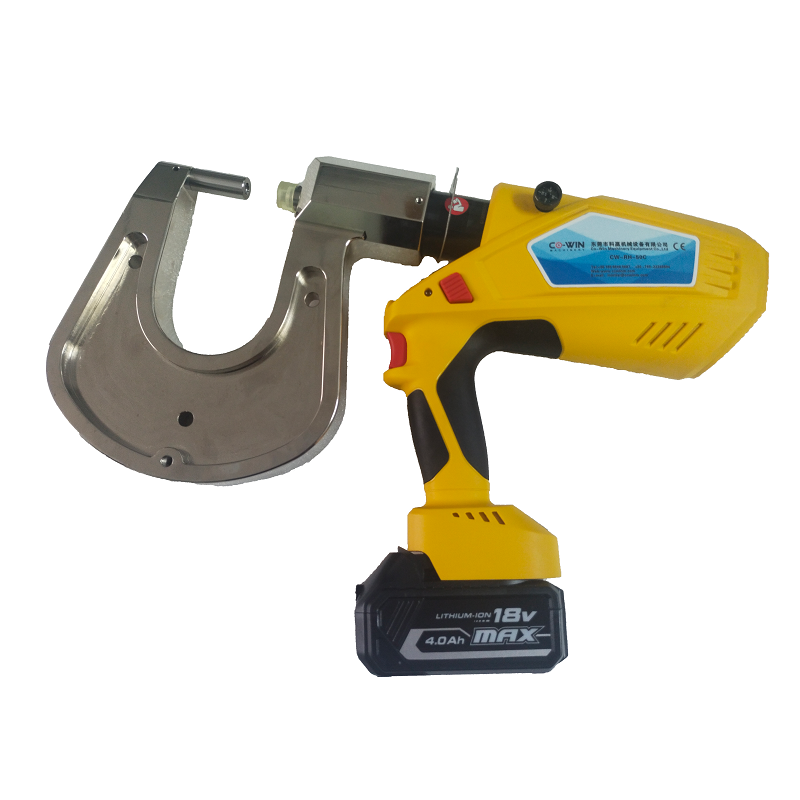

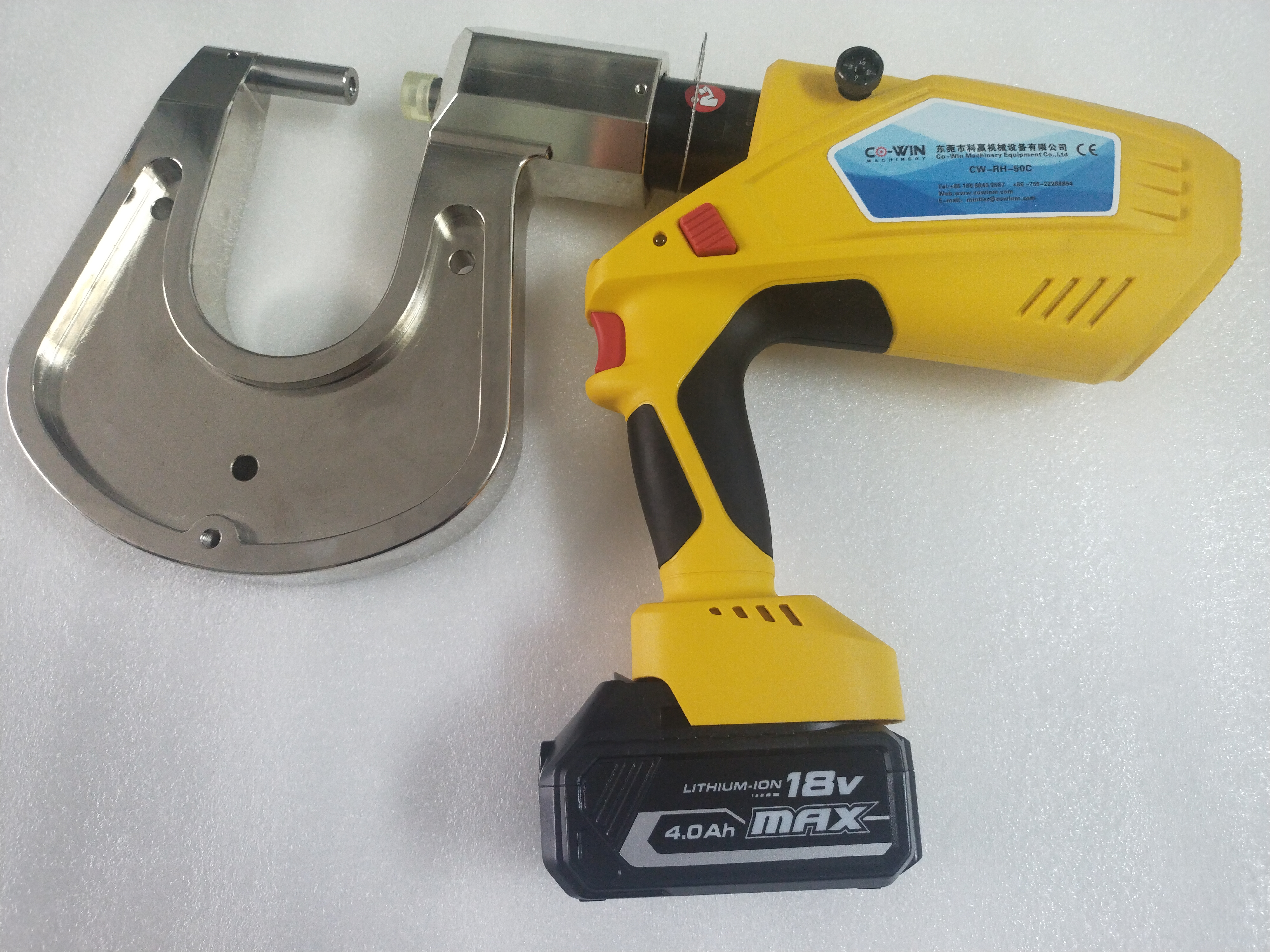

CW-RH-50C
CO-WIN
Technical Features:
1. According to the size of the rivet and the strength of the riveted material requirements, riveting force is extremely adjustable, can be used for riveting, filling,
punching and plugging, the plate press flat shape,clinching etc. 2.Fast quasi-stop function, release the button during riveting process, the tool is temporarily suspended and can be started again, the safety valve can be released

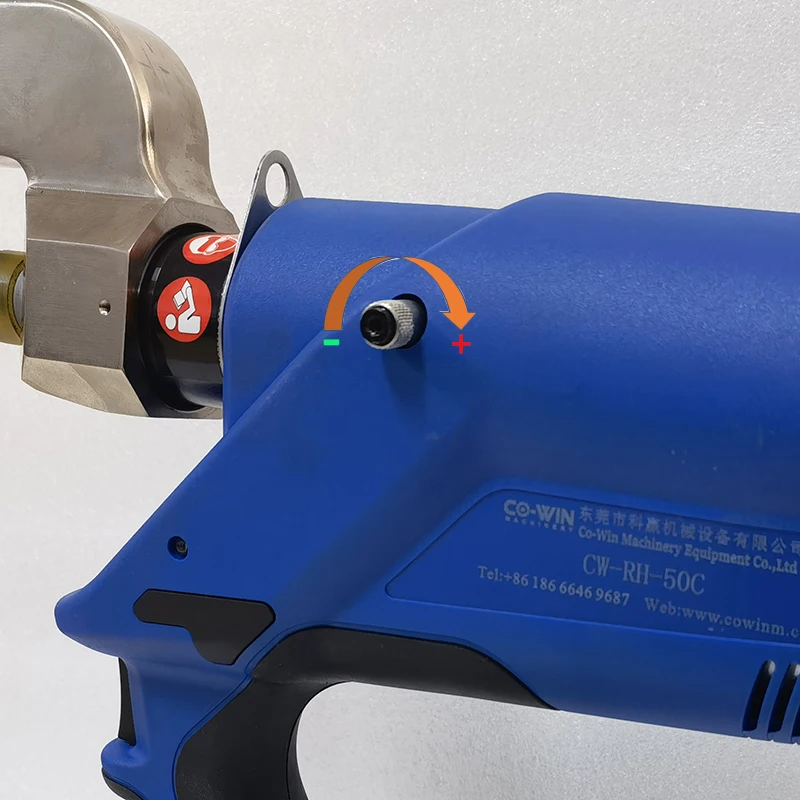

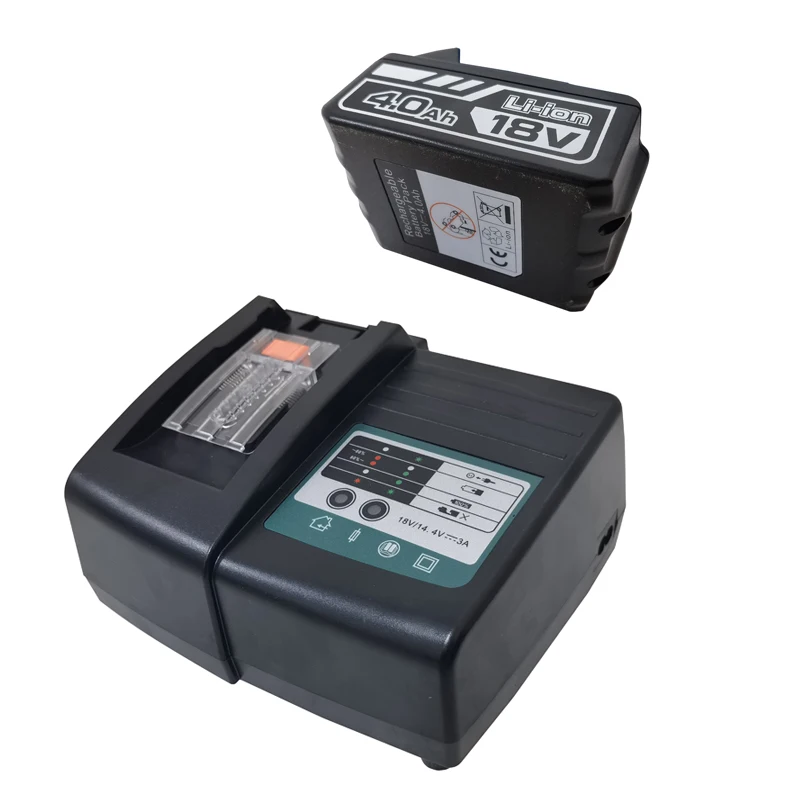

automatically or manually after reaching a certain pressure, and the working stroke can be accurately adjusted. 3. Ergonomic design of anti-skid handle, 360° free rotation clamp body is suitable for a variety of Angle applications 4. Microcomputer control system, automatic riveting process to implement pressure detection and double safety protection. 5. High-performance lithium ion battery provides more powerful power source, with low power reminder function, no discharge memory effect. 6.Rivets can be removed by tooling
| No | Item | Specification |
| 1 | Driving mode | Electro-hydraulic |
| 2 | Pressure | 30~60Kn (adjustable) |
| 3 | Stroke | 35mm |
| 4 | Motor | 18V DC |
| 5 | Power | AC 100V-240V 50-60HZ |
| 6 | Charging time | 1 hour |
| 7 | Time per riveting | 3~5s/time |
| 8 | Work time/fully charged | 200~350 time |
| 9 | Weight/set | 4kg |
| 10 | Noise | 75dB |

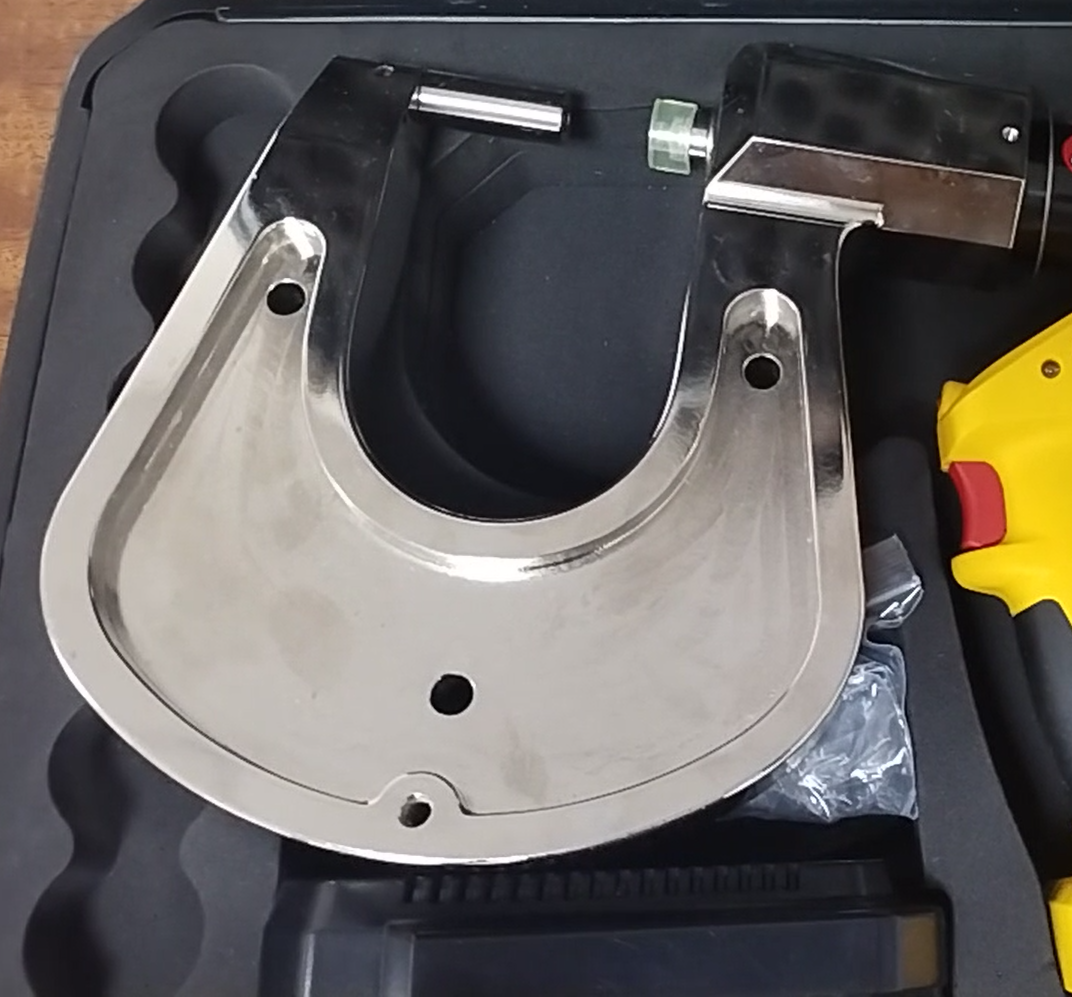

Clinching equipment for HVAC, construction, automotive, application, electronic, sheet metal and general industries, customers need different clinching arms for
different working pieces and different work situation. Our experienced technician team is always ready for you to make customized design to meet your special
demand. If you have any project and need a clinching gun with customized arms, you are welcome to contact us.
