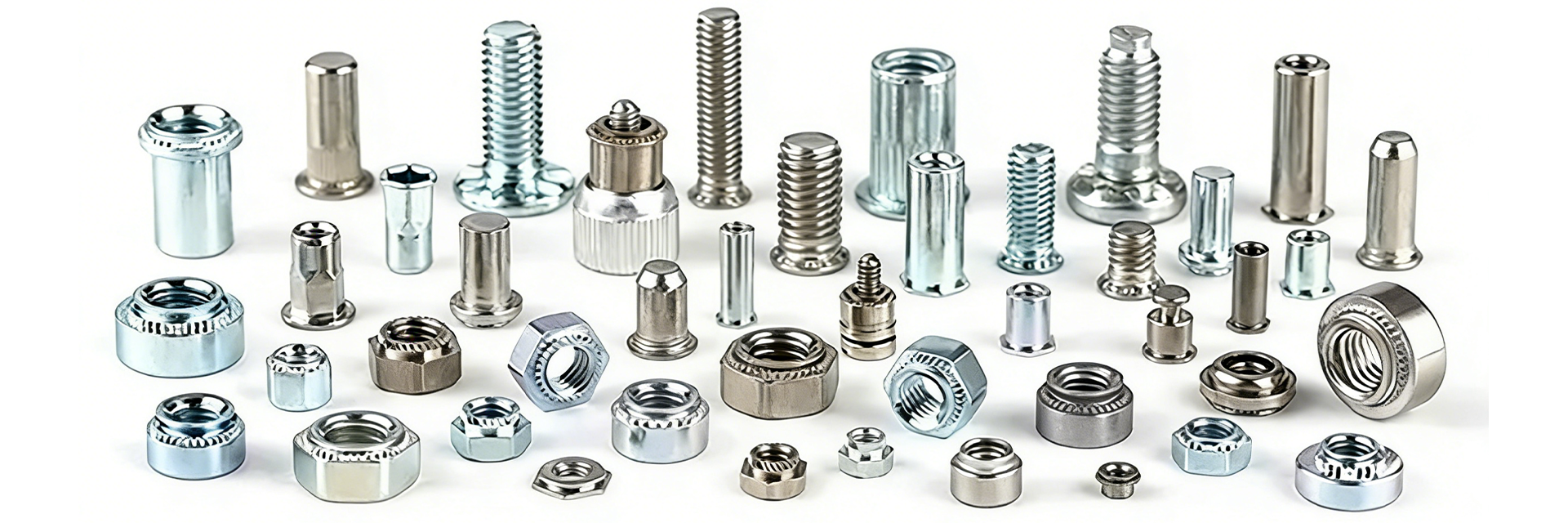

The core function of this hydraulic riveting machine is to apply stable hydraulic pressure to press a full range of fasteners (including nuts, studs, rivets, standoffs, etc.) into sheet metal or workpieces accurately and firmly, forming permanent threaded joints and reliable connection structures. As a premium alternative to traditional processes such as welding, drilling and tapping, it boasts core advantages of zero workpiece deformation, spark-free operation, ultra-high precision, and exceptional processing efficiency.

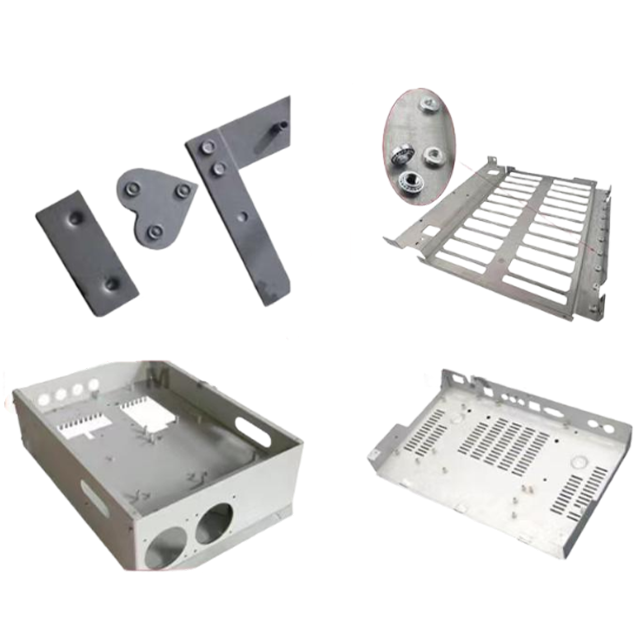

Sheet Metal Fabrication Industry: For threaded insert installation of electrical distribution boxes, control cabinets, equipment enclosures and various metal housings.
Automotive Manufacturing Industry: For fastener mounting of vehicle body panels, chassis components, interior trim parts and auto accessory assemblies.
Aerospace Industry: For high-precision fastening connection of aircraft components, aviation equipment parts and aerospace structural workpieces.
Electronics & Electrical Equipment Industry: For metal structural part assembly of servers, telecom equipment, household appliances and industrial control devices.
Medical Device Industry: For precision riveting of medical equipment housings, instrument brackets and precision medical device components.
Rail Transit Industry: For fastening connection of metal structural components for high-speed rail, metro carriages and urban rail transit equipment.
2–72KN stepless adjustable hydraulic pressure, ±2% high precision, compatible with M2–M12
Heavy-duty all-steel C-frame, 24" throat depth&17" throat height, fits large/complex sheet metal workpieces
0–200mm adjustable working stroke, supports wide range of fastener sizes
Standard anti-pinch safety system, complies with global industrial safety standards
Intelligent MSP touch screen HMI, easy parameter setting & multi-recipe one-click recall
Global grid-compatible hydraulic power unit, supports long-term uninterrupted operation
Rich optional configurations for upgraded automation and production efficiency
Robust all-steel build, modular low-maintenance design, reduces long-term operating costs

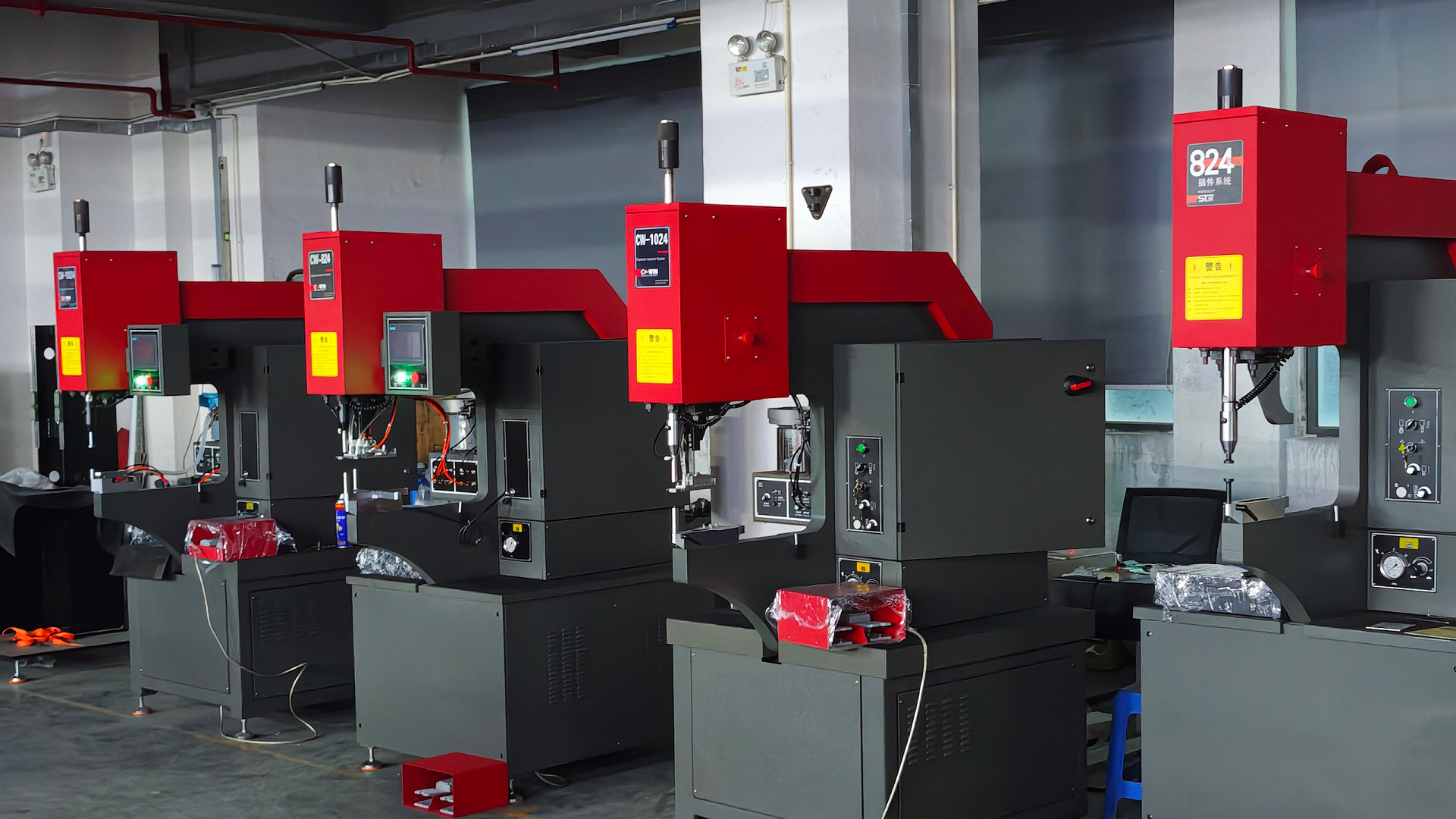

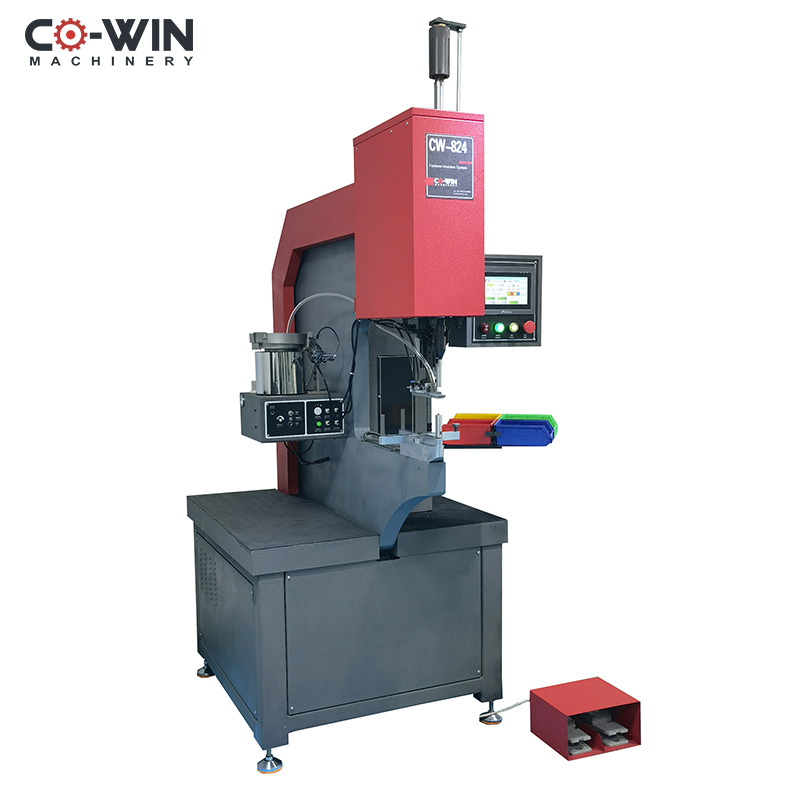

We provide high-definition images and working videos to showcase the structural details, operation process and processing performance of the CW-824MSP Hydraulic Fastener Insertion Machine, including:
What sheet metal materials and thicknesses is the CW-824MSP compatible with?
It works seamlessly with most common industrial sheet metals, including cold-rolled steel, galvanized sheet, stainless steel, aluminum alloy and copper, with a compatible thickness range of 0.5mm to 8mm. It adapts to both thin-panel precision riveting and thick-plate heavy-duty pressing.
What fastener range and pressure does the CW-824MSP support?

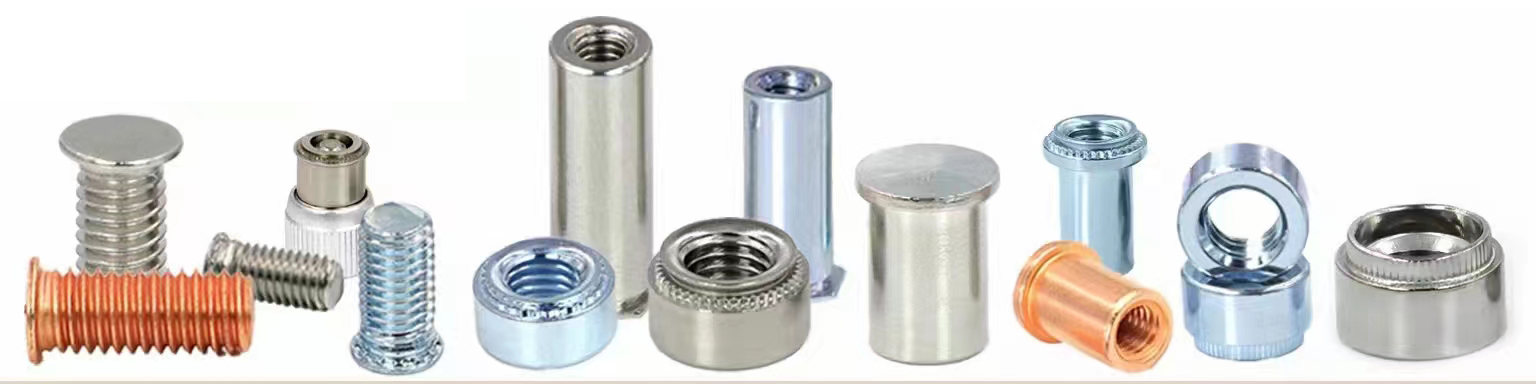

It supports M2-M12 fasteners (nuts, studs, rivets, standoffs) with a 2-54KN stepless adjustable hydraulic pressure and ±2% high precision, ensuring stable and accurate processing.
What optional upgrades are available, and which are recommended for automated mass production?

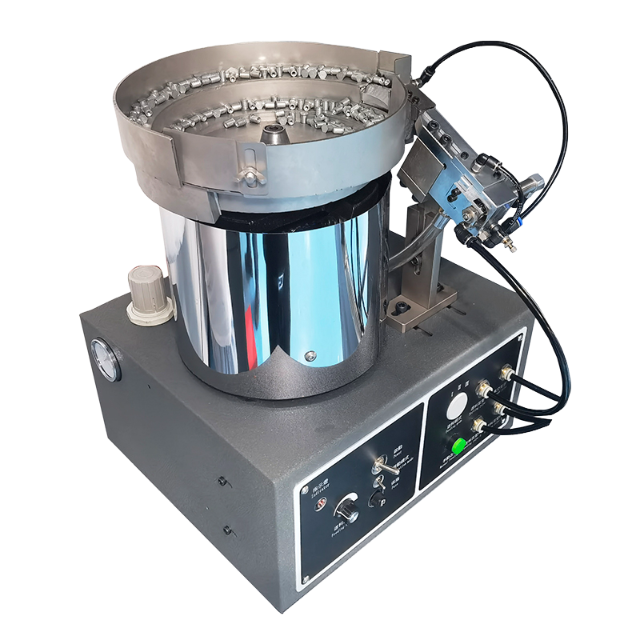

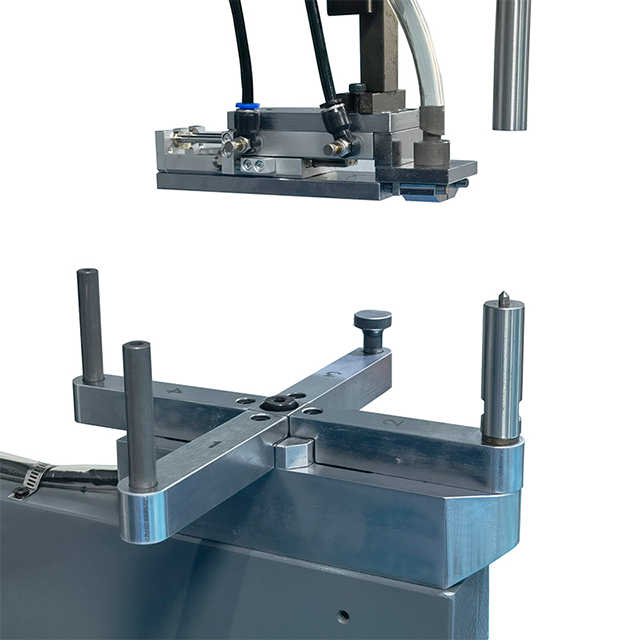

We offer a full range of customizable upgrades. For high-volume automated production, our top recommendations are the 4-Station Turret Insertion System (for 2-minute tool-free changeover), Automatic Bottom Feed Tooling with Vibratory Bowl Feeder (for unmanned continuous feeding), and Laser Positioning Device (for fast workpiece alignment).
How long does it take a new operator to master the machine?
The intuitive MSP touch screen features simplified parameter settings and one-click process recall. With our detailed operation manual, video guidance and 1-2 hours of online training, an operator with basic industrial equipment experience can master basic operation proficiently within 1 working day.
What are the wearing parts, and what is the recommended replacement cycle?
The main wearing parts are riveting punches, dies, hydraulic oil seals and filter elements. Under normal 8-hour daily operation, we recommend replacing hydraulic oil and filter elements every 6 months, and inspecting/replacing punches and dies based on wear (usually every 8-12 months for mass production). All wearing parts are available in our standard spare parts list, with short lead times and affordable pricing.
What is the warranty policy?
We offer a 12-month global whole-machine warranty, 24-month warranty for the main C-frame body, 7/24 online technical support and long-term supply of original spare parts.
What is the MOQ and standard lead time?
The MOQ is 1 unit, supporting both sample orders and bulk procurement. Standard lead time for base configuration machines is 7-10 working days after order confirmation; for custom-configured machines, lead time is 15-30 working days, depending on customization requirements.
