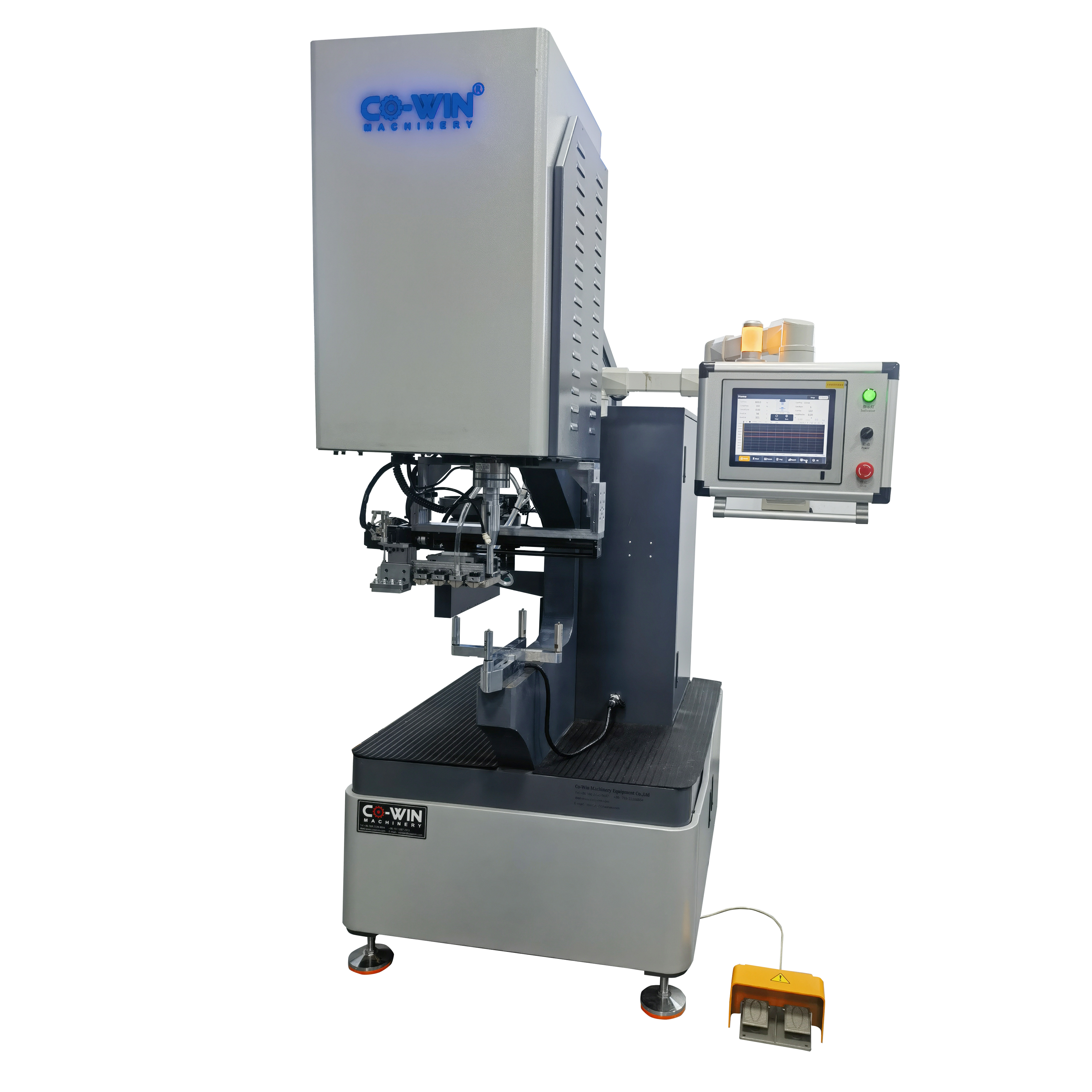

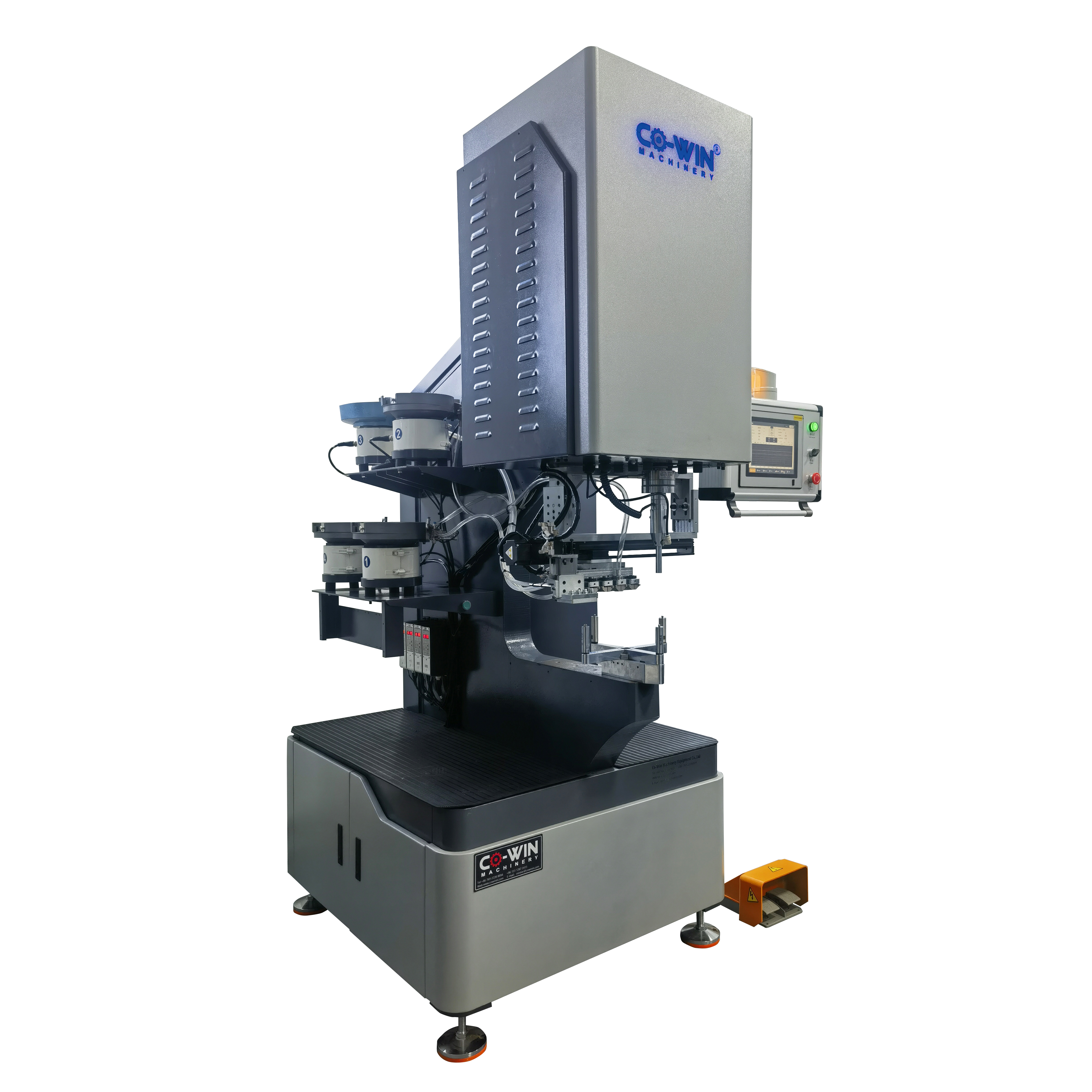

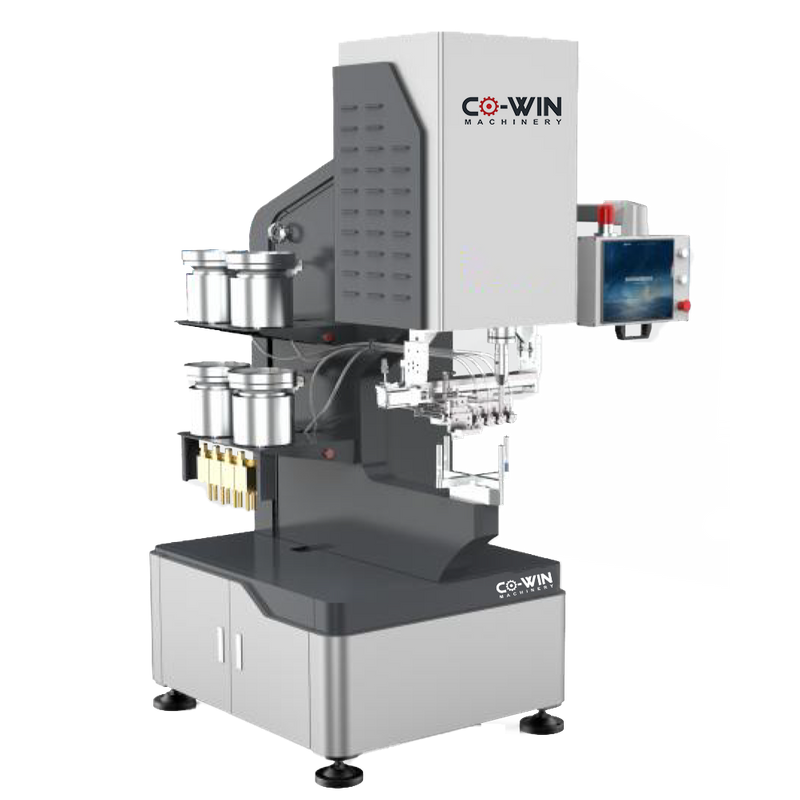

CW-S824-4E
CO-WIN
Specifications | |
Device model | Parameter Description |
Pressure range | 2-80KN |
Drive System | Industrial Computer + Sports Card Control |
C-type throat depth | 600mm |
C-type throat height | 400mm |
Travel distance | 200mm |
Equipment Load Repeatability | ±1% |
Sower | 5.5KW |
Voltage | 380V Three-Phase Four-Wire 50HZ |
Security system | Standard |
Automatic Feeding Control System | Four Feeders |
Automatic Feeding Tool | Optional |
The Load Resides Calculator | Standard |
Positive Limit | Standard |
Bulk Leak Prevention System | Standard |
Hand Operated Tools | Standard |
Weight | 1500KG |
Dimensions | 1200*1500*2200mm |
Intelligent and Efficient
Intelligent control
Autonomic regulation
Precision calculation

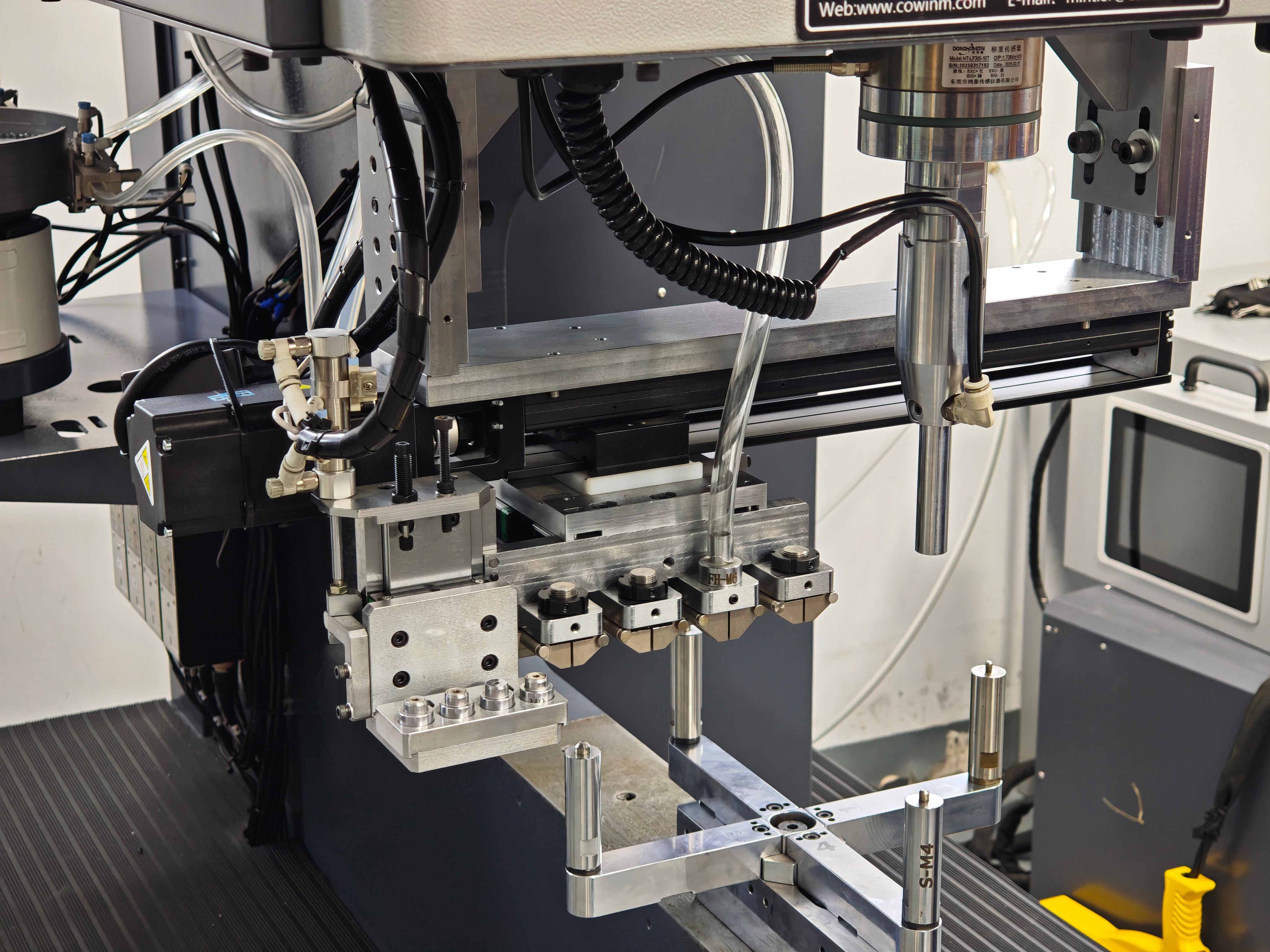

Modular automatic feeding system.

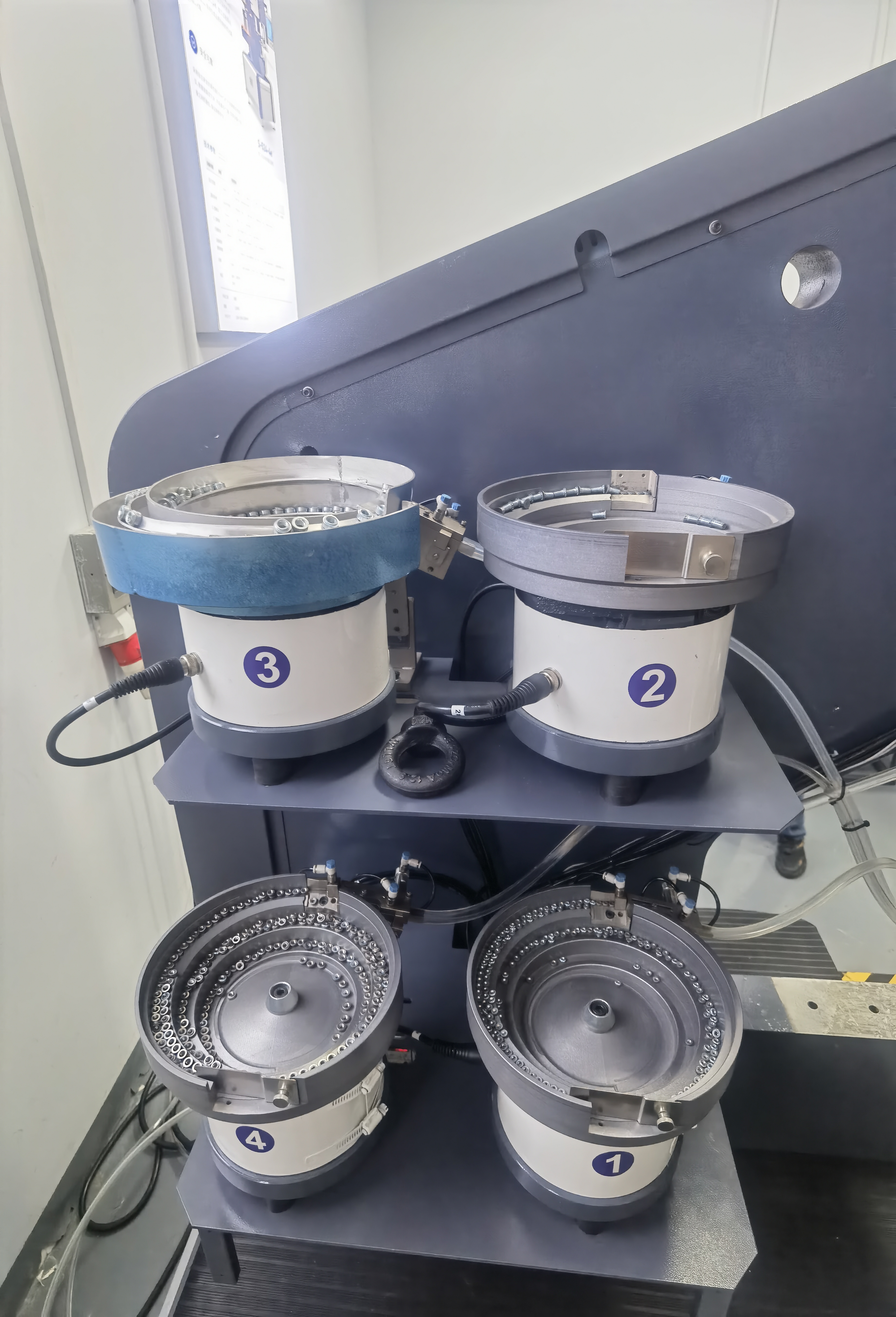

Four trays of automatic feeding
Servo touch screen
Wireless connections
Remote upgrade
Introduce
1. Suitable for carbon steel plate riveting of nuts of M10 and below, nut columns of M8 and below, and screws of M6 and below; it can realize flange extraction, convex hull forming, rivet-free connection, self-piercing riveting, and other processes.
2. Reserve output and input points to facilitate later function upgrades; no need to replace the electric control board, re-enter the program.
3. Meet more than 95% of the plate riveting needs.
4. Strong avoidance space makes it easier to unload bent products.
5. According to the product height, the rising position can be reasonably adjusted to save riveting time.
6. The dedicated pressure test adjustment button can find the appropriate riveting pressure within 10 seconds, and the equipment load accuracy is ±1%.
7. The servo-electric system saves more than 70% energy than the hydraulic system; compared with the pneumatic solution, it can save up to 90% of the cost.
8. According to the product's conductive properties, it works in conductive and non-conductive modes, which greatly enhances the operator's confidence and riveting efficiency, and there are no safety hazards.
9. Applicable to M2~M6 PEM series screws/nut columns and nuts, which can triple the efficiency of manual feeding riveting. It can automatically divert and import various rivets without changing the vibration plate.
10. Quick interchange
11. The maximum holding time can reach more than 6S, reducing the deformation of the plate.
12. Effectively prevent soft materials such as aluminum and copper and materials with a thickness of less than 1.0mm from being deformed or scratched after riveting, after surface sprayin,g or special surface treatment.
13. Set the number of riveting times according to the number of riveting times required for a single part. The counter counts once each time the machine tool works. After reaching the set number, it automatically returns to zero and starts counting again. At the same time, the buzzer alarm prompts to prevent missing rivets.
Application features
The servo fastener insertion machine is an efficient and precise automation equipment designed for the installation of various fasteners. The equipment adopts advanced servo control technology, which can achieve a fast and precise fastening process. It is widely used in many industries such as automobiles, electronics, home appliances, machinery manufacturing, aerospace, etc.
Main features
High precision: The servo control system ensures that the installation torque of each fastener meets the preset standard, significantly improving product quality.
Efficiency: The fast insertion speed significantly shortens the production cycle and improves the overall efficiency of the production line.
Traceability: The system records the parameters of each fastening process, which is convenient for subsequent quality inspection and tracking.
Intelligent operation: The friendly operation interface simplifies the setting and adjustment of the equipment and is suitable for various production needs.
Application areas
Automobile manufacturing: Used for fastening of body, chassis and engine components to meet high strength and high precision requirements.
Electronic products: Used for circuit board and housing assembly to ensure accurate installation of screws.
Home appliance industry: Used for the installation of internal components of household appliances such as refrigerators and washing machines to improve production efficiency.
Machinery manufacturing: Provide fast and accurate fastening solutions for various mechanical equipment.
Aerospace: Accurate installation of key components to ensure the safety and reliability of equipment.
