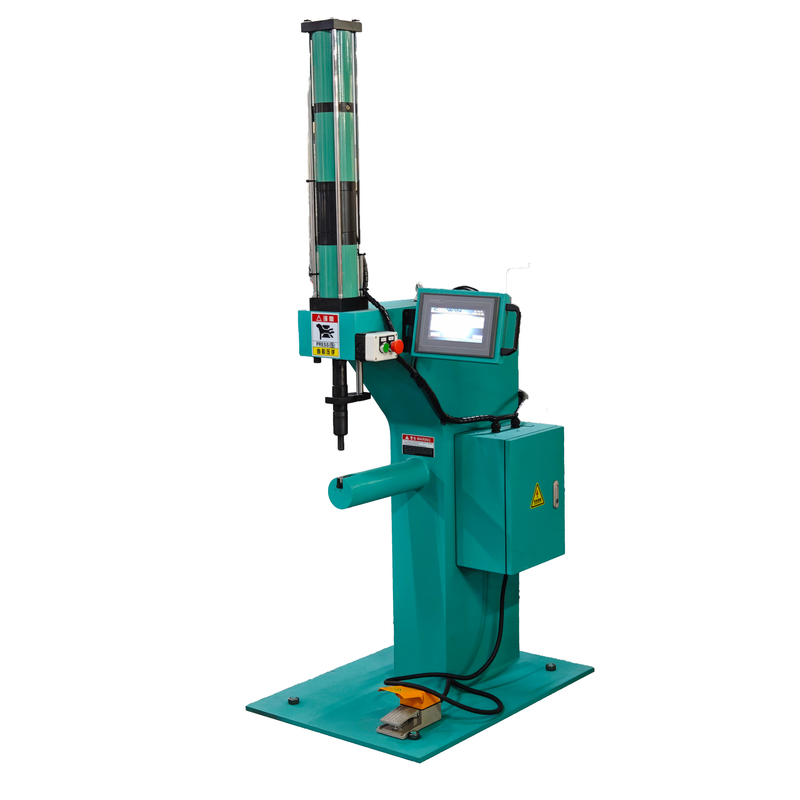

CW-AR-8T Rivetless riveting machine

Availability:
Quantity:
Inquire Add to Basket

  • CW-AR-8T

  • CO-WIN

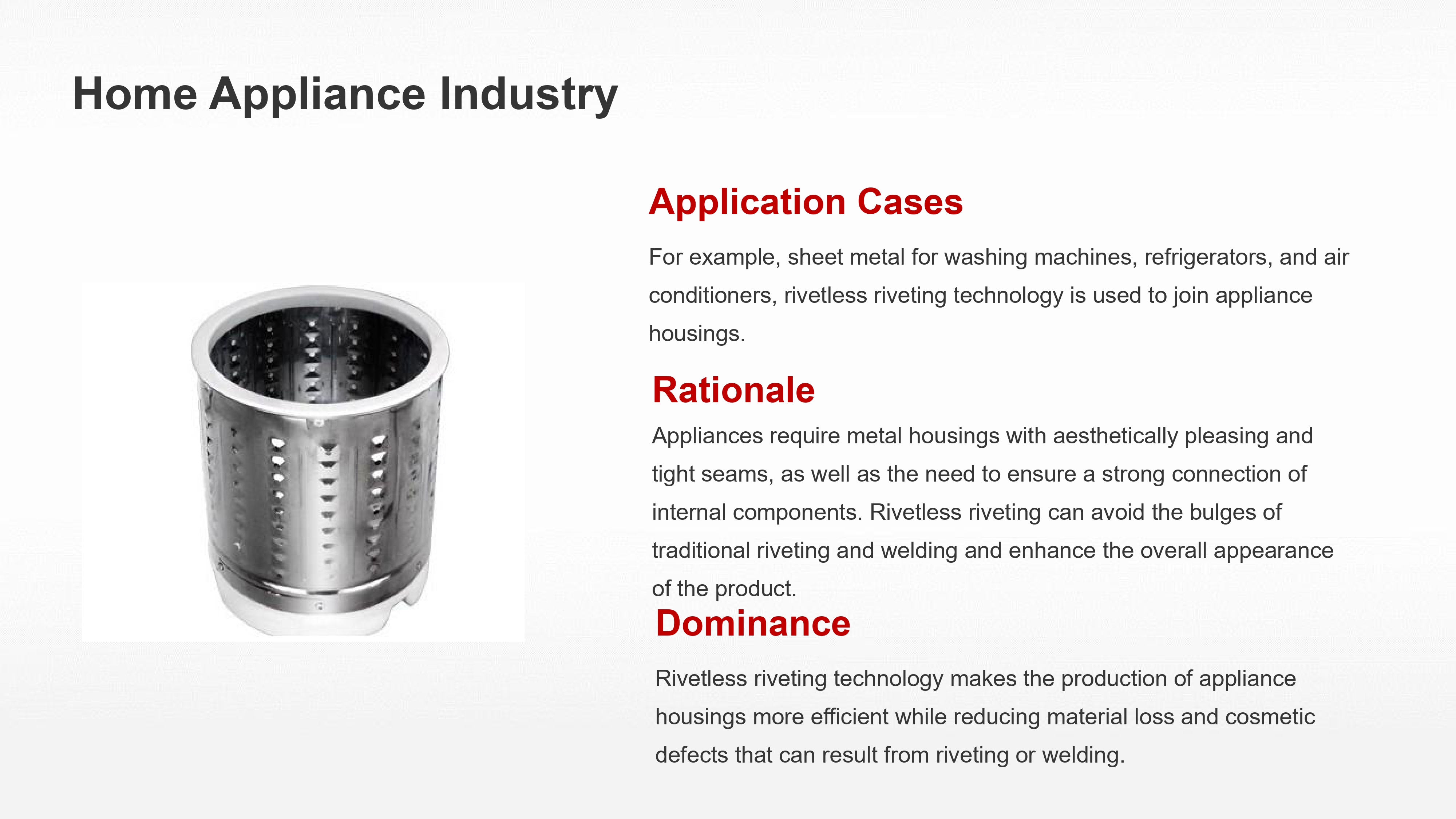

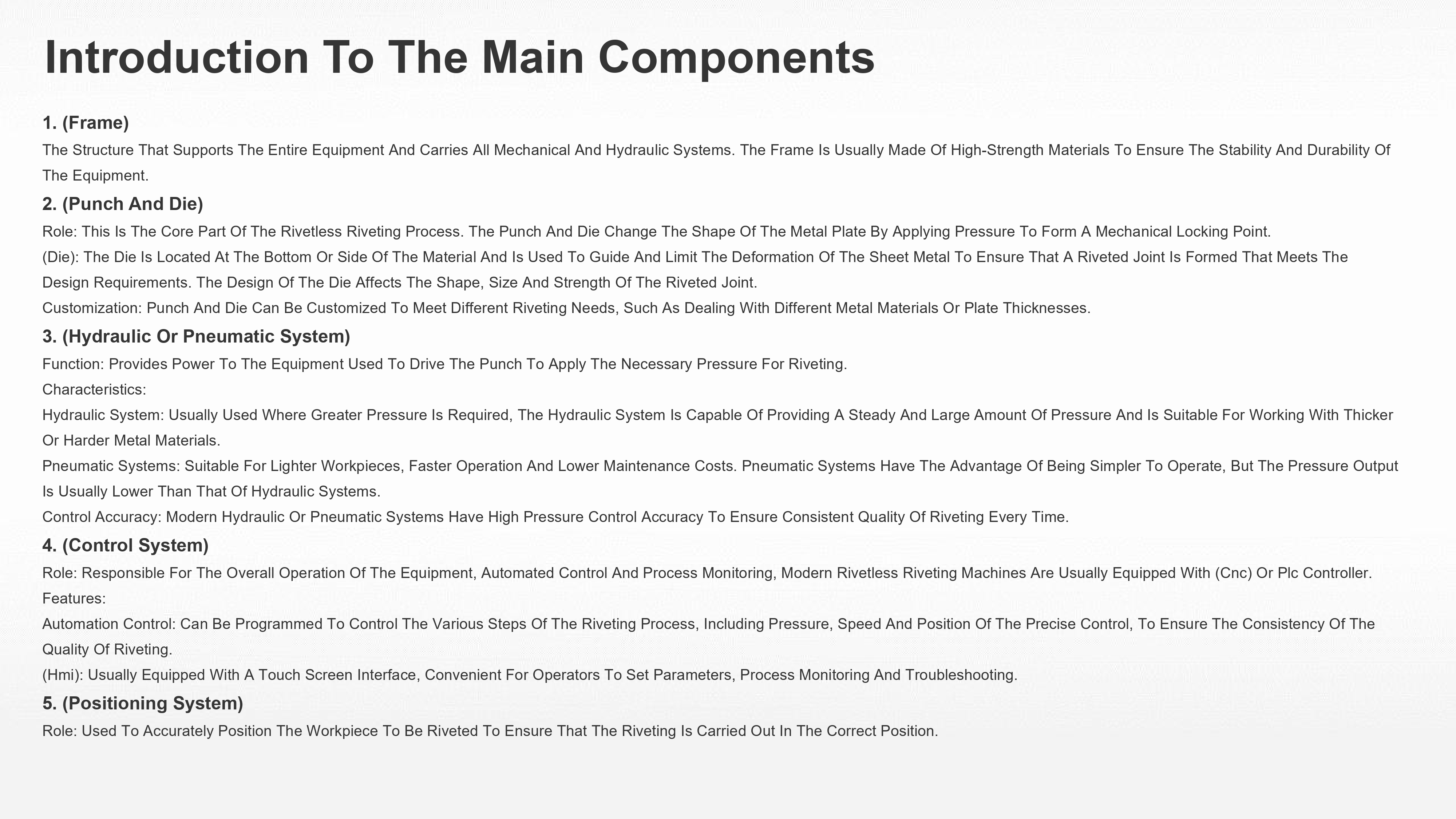

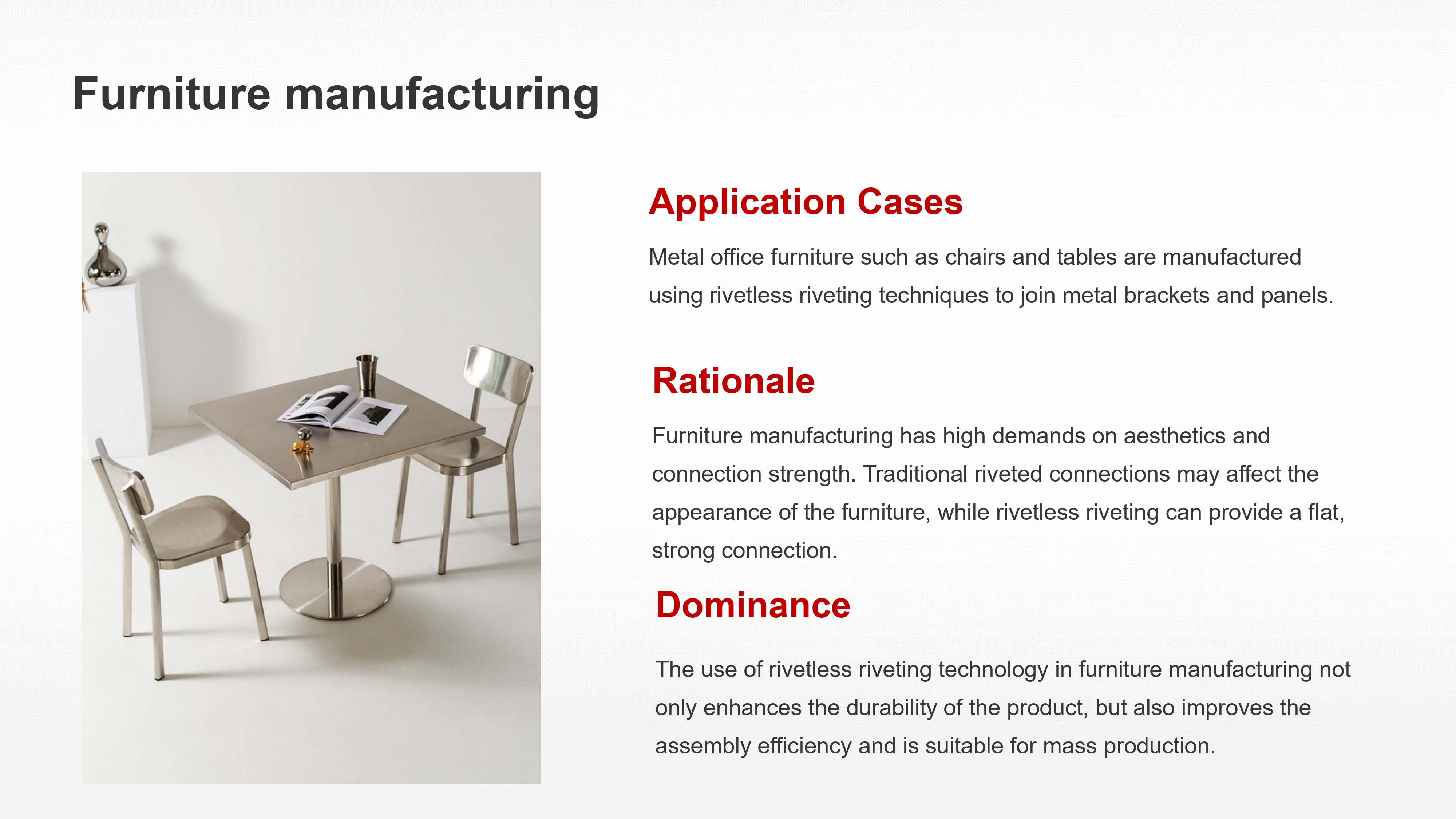

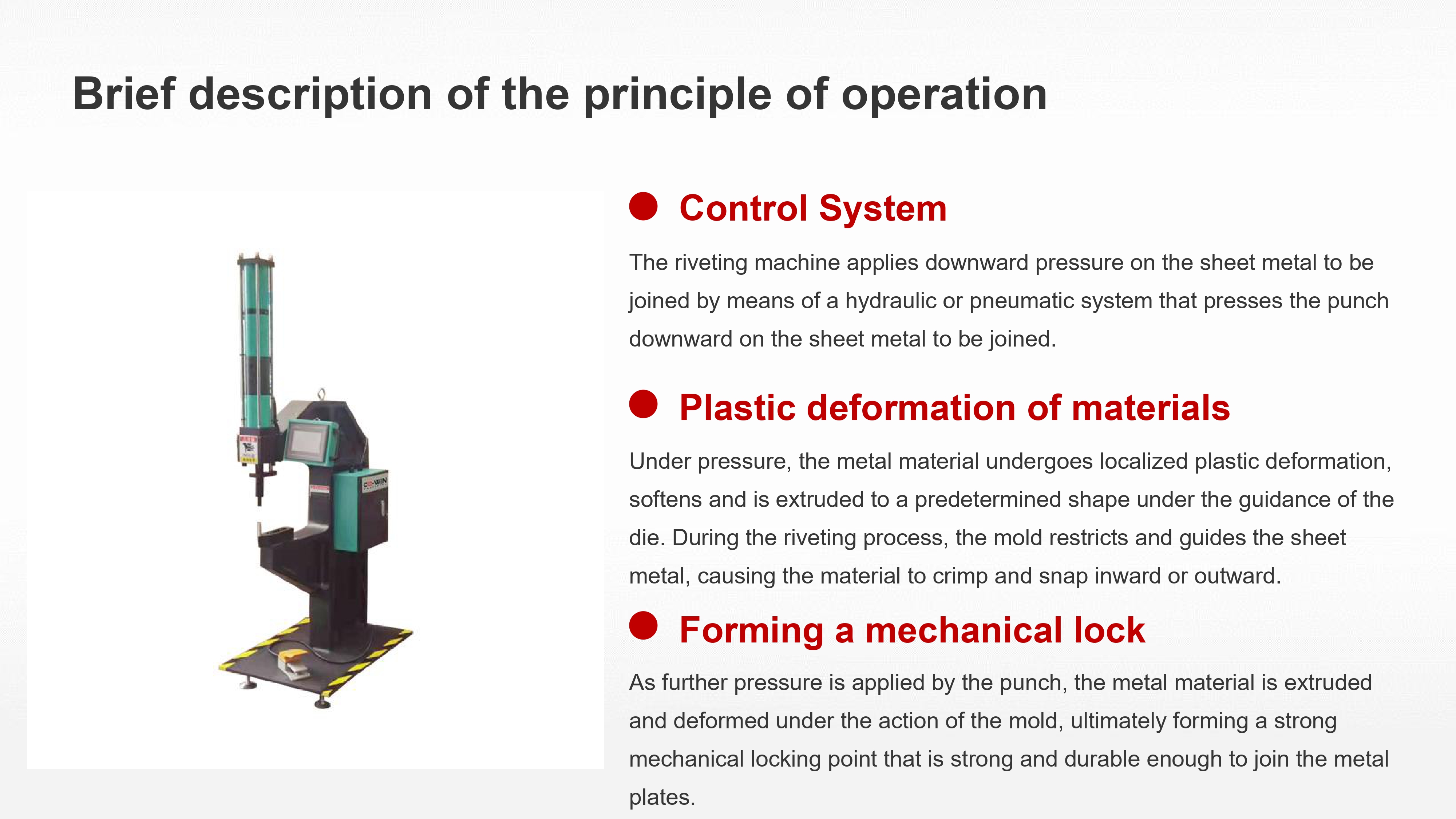

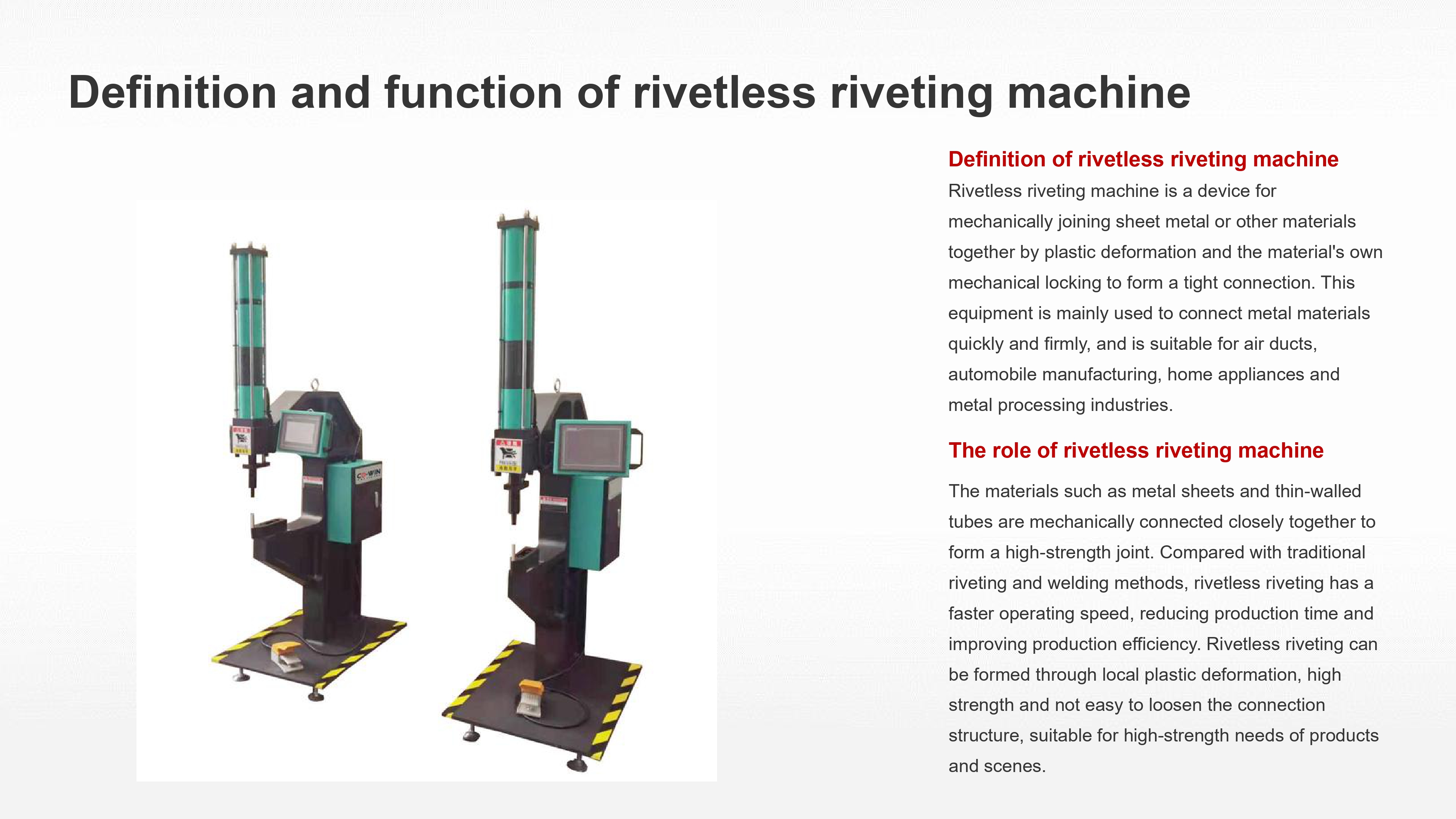

无铆铆接机产品介绍_page-0001无铆铆接机产品介绍_page-0002无铆铆接机产品介绍_page-0003无铆铆接机产品介绍_page-0004无铆铆接机产品介绍_page-0005无铆铆接机产品介绍_page-0006

最大力量 Max Force

76KN

总行程 Total Stroke

100mm

动力行程 Power Stroke

12mm

喉深 Throat Depth

500mm

重量 Weight

500KG

电源 Power supply

220V/50W

润滑油 Oil

46#液压油 46# hydraulic oil

机器尺寸 Machine size

L600*W500*H1800（mm）


Previous:
Next:
Rivetless riveting machine
