| C-Frame Hydraulic Fastener Insertion Machine | |||
| Device Model | CW-618Plus | CW-824Plus | CW-1024Plus |
| Force Range Adjustable | (2kN)to(54 kN) | (2kN)to(72 kN) | (2kN)to(92 kN) |
| Throat Depth | 18"(457mm) | 24"(610mm) | 24"(610mm) |
| C Type Throat Height | 15"(381mm) | 17"(432mm) | 17"(432mm) |
| Repeatability | +/- 2% of force setting | +/- 2% of force setting | +/- 2% of force setting |
| Stroke Length | 0 to 8"(0 to 200mm) | 0 to 8"(0 to 200mm) | 0 to 8"(0 to 200mm) |
| Fastener Range | M2 to M10 | M2 to M10 | M2 to M12 |
| Clinching Capability | 1mm to 6mm combined thickness | 1mm to 6mm combined thickness | 1mm to 6mm combined thickness |
| Protection Press Hand System | Standard | Standard | Standard |
| Automatic Feed | Option | Option | Option |
| Laser Positioning Instruction | Option | Option | Option |
| Motor | 5 HP 3 Phase | 5 HP 3 Phase | 5 HP 3 Phase |
| Electrical | 200v to 575v 3 phase 50 or 60hz. | 200v to 575v 3 phase 50 or 60hz. | 200v to 575v 3 phase 50 or 60hz. |
| Oil Tank Reservoir | 13gallons (50 liters) | 22gallons (83 liters) | 22gallons (83 liters) |
| Single Machine Dimesion | L1320*W1100*H2140(mm) | L1770*W1220*H2260(mm) | L1770*W1220*H2260(mm) |
| Weight | 650kg | 1160kg | 1160kg |
Touch screen
Wireless connection
Remote Upgrade
Modular Autofeed
System.
Anti Pressing Hand
Protective System
MAS Control Screen:
Operators can turn on and off the auto feed and set eject time and vibration from this screen.
Programs:
Up to 999 programs can be stored
Main Uses & Application Industries
The core function of this hydraulic riveting machine is to apply stable hydraulic pressure to press a full range of fasteners (including nuts, studs, rivets, standoffs, etc.) into sheet metal or workpieces accurately and firmly, forming permanent threaded joints and reliable connection structures. As a premium alternative to traditional processes such as welding, drilling and tapping, it boasts core advantages of zero workpiece deformation, spark-free operation, ultra-high precision, and exceptional processing efficiency.
Sheet Metal Fabrication Industry: For threaded insert installation of electrical distribution boxes, control cabinets, equipment enclosures and various metal housings.
Automotive Manufacturing Industry: For fastener mounting of vehicle body panels, chassis components, interior trim parts and auto accessory assemblies.
Aerospace Industry: For high-precision fastening connection of aircraft components, aviation equipment parts and aerospace structural workpieces.
Electronics & Electrical Equipment Industry: For metal structural part assembly of servers, telecom equipment, household appliances and industrial control devices.
Medical Device Industry: For precision riveting of medical equipment housings, instrument brackets and precision medical device components.
Rail Transit Industry: For fastening connection of metal structural components for high-speed rail, metro carriages and urban rail transit equipment.
Key Features & Advantages
2-54KN stepless adjustable hydraulic pressure, ±2% high precision, compatible with M2-M12 fasteners
Heavy-duty all-steel C-frame, 18" throat depth, fits large/complex sheet metal workpieces
0-200mm customizable stroke, supports max 30mm studs/standoffs for diverse applications
Standard anti-pinch safety system, complies with global industrial safety standards
Intelligent MSP touch screen HMI, easy parameter setting & multi-recipe one-click recall
Global grid-compatible hydraulic power unit, supports long-term uninterrupted operation
Rich optional configurations for upgraded automation and production efficiency
Robust all-steel build, modular low-maintenance design, reduces long-term operating costs
Images & Video
We provide high-definition images and working videos to showcase the structural details, operation process and processing performance of the CW-618plus Hydraulic Fastener Insertion Machine, including:

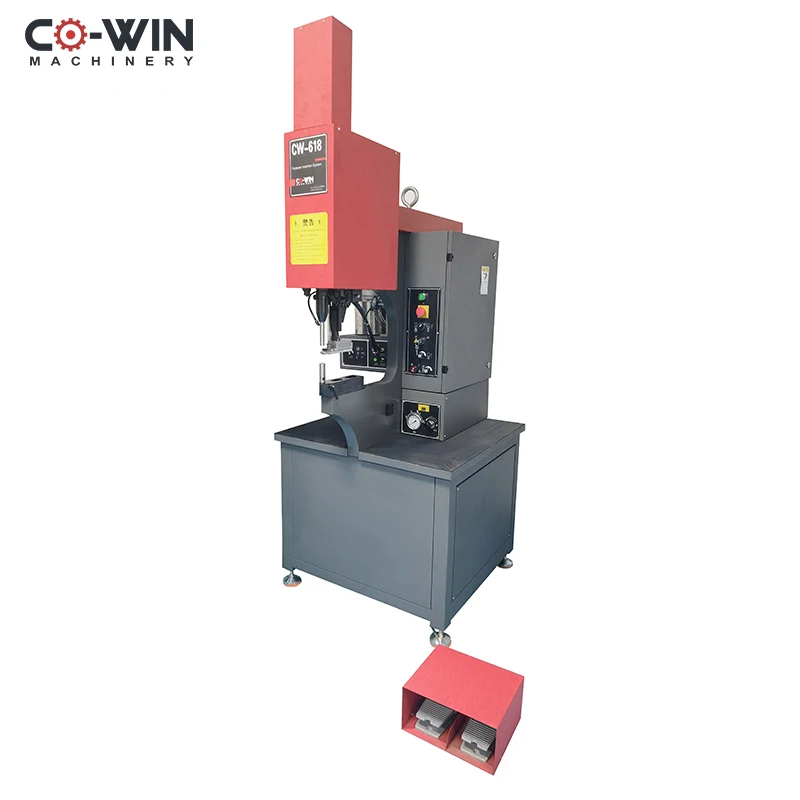

Overall images: Multi-angle views showing the machine's heavy-duty C-frame structure and integrated industrial design

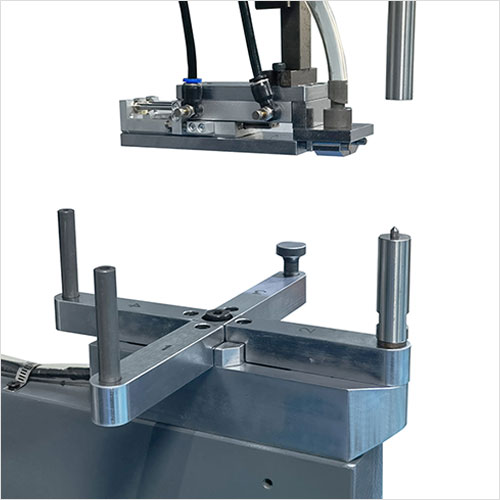

Detail images: Close-ups of core components and optional accessories, highlighting premium manufacturing quality
Working videos: Full riveting process and function demonstrations, presenting the machine's high precision, efficiency and safety
Finished samples: Processed sheet metal workpieces across industries, showing stable riveting quality and wide application adaptability
Packaging & Shipping
Packaging: Standard export wooden case packaging, with moisture-proof, shock-proof and anti-collision treatment inside, to avoid damage to the machine during transportation.
Transportation: Support sea transportation, land transportation and other modes of transportation, according to the customer's location and demand to choose the most suitable transportation scheme, and provide complete customs clearance documents.
Delivery Time: 3-15 days (depending on the order quantity and customization requirements), and we will timely feedback the transportation progress to the customer during the transportation process.
FAQ
What sheet metal materials and thicknesses is the CW-618plus compatible with?
It works seamlessly with most common industrial sheet metals, including cold-rolled steel, galvanized sheet, stainless steel, aluminum alloy and copper, with a compatible thickness range of 0.5mm to 8mm. It adapts to both thin-panel precision riveting and thick-plate heavy-duty pressing.
What is the single riveting cycle speed and expected hourly output?
The standard single full-stroke riveting cycle is completed within 3 seconds under conventional working conditions. For stable batch production, it can achieve 800-1200 riveting operations per hour, with actual output varying by fastener type, workpiece complexity and operator proficiency
What optional upgrades are available, and which are recommended for automated mass production?

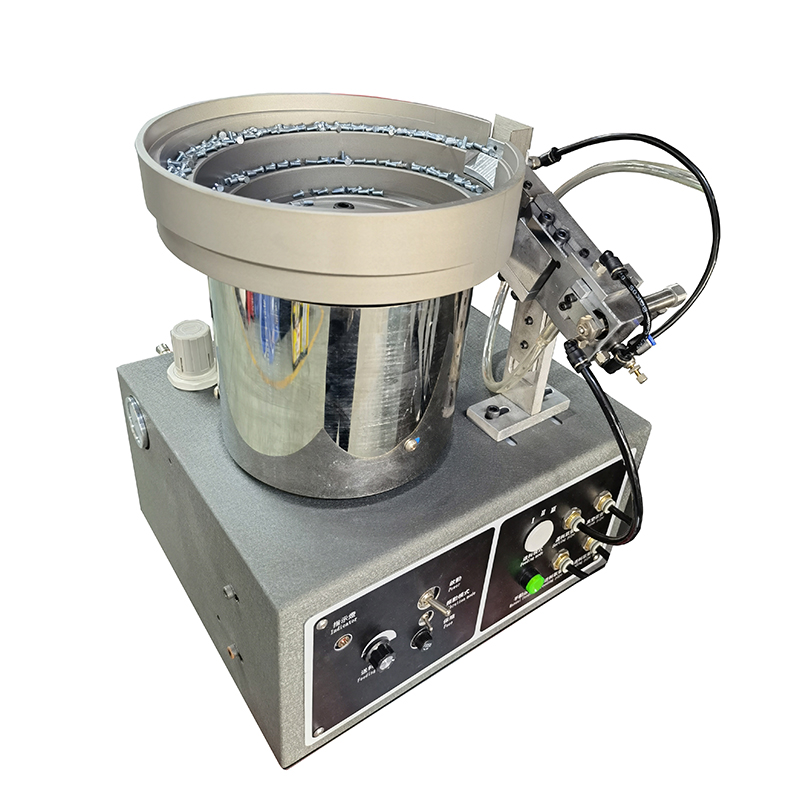

We offer a full range of customizable upgrades. For high-volume automated production, our top recommendations are the 4-Station Turret Insertion System (for 2-minute tool-free changeover), Automatic Bottom Feed Tooling with Vibratory Bowl Feeder (for unmanned continuous feeding), and Laser Positioning Device (for fast workpiece alignment). We also support custom upgrades like extended stroke kits and multi-language HMI systems.
How long does it take a new operator to master the machine?
The intuitive MSP touch screen features simplified parameter settings and one-click process recall. With our detailed operation manual, video guidance and 1-2 hours of online training, an operator with basic industrial equipment experience can master basic operation proficiently within 1 working day.
What are the wearing parts, and what is the recommended replacement cycle?
The main wearing parts are riveting punches, dies, hydraulic oil seals and filter elements. Under normal 8-hour daily operation, we recommend replacing hydraulic oil and filter elements every 6 months, and inspecting/replacing punches and dies based on wear (usually every 8-12 months for mass production). All wearing parts are available in our standard spare parts list, with short lead times and affordable pricing.
What is the warranty policy?
We offer a 12-month global whole-machine warranty, 24-month warranty for the main C-frame body, 7/24 online technical support and long-term supply of original spare parts.
What is the MOQ and standard lead time?
The MOQ is 1 unit, supporting both sample orders and bulk procurement. Standard lead time for base configuration machines is 7-10 working days after order confirmation; for custom-configured machines, lead time is 15-30 working days, depending on customization requirements.
