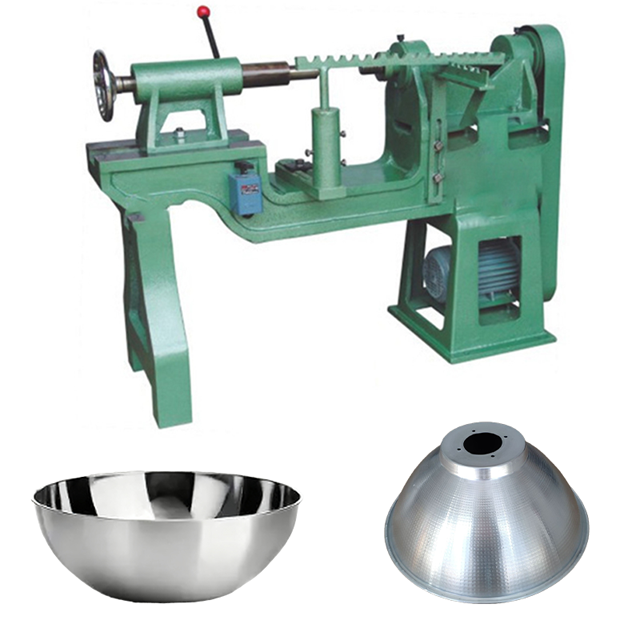

CW-B-800
CO-WIN
| Manual Metal Spinning Machine | |||
| Model | CW-B-600 | CW-B-800 | CW-B-1200 |
| Maximum machining diameter (mm) | 600 | 800 | 1200 |
| Maximum machining length (mm) | 600 | 800 | 1000 |
| Thickness of processed material (mm) | Aluminum ≤ 5.0 mm Steel ≤ 2.5 mm | Aluminum ≤ 6.0 mm Steel ≤ 3.0 mm | Aluminum ≤ 8.0 mm Steel ≤ 4.05 mm |
| Spindle speed (rpm) | 40-1200 RPM Manual Stepless Speed Regulation | 30-1000 RPM Manual Stepless Speed Regulation | 20-800 RPM Mmanual stepless speed Regulation |
| Tail-end force (KN) | 30 | 40 | 50 |
| Tail top travel (mm) | 500 | 600 | 800 |
| Number of spinning wheels (pieces) | 2 | 2 | 3 |
| Rotary wheel material | cemented carbide | cemented carbide | High-speed steel reinforced |
| Spindle through-hole diameter (mm) | 82 | 100 | 120 |
| Chuck type | Three-jaw manual chuck | Four-jaw manual chuck | Four-jaw manual chuck |
Machine tool dimensions (length × width × height, mm) | 1800x600x1100 | 2000x680x1200 | 2500x800x1350 |
| Machine tool weight (kg) | 900 | 1200 | 1800 |
| Core configuration | 4 | 5.5 | 7.5 |
Short Description
Manual metal spinning machine features easy operation, compact structure, hydraulic auxiliary tail jack and two cemented carbide wheels. It is suitable for forming aluminum, copper, steel and stainless steel into cylindrical, conical and hemispherical parts, with high precision, low cost and stable performance, widely used in lighting, hardware, cookware and handicraft industries for small-batch production.
Manual SPINNING PROCESS PRINCIPLES
The working principle of the manual metal spinning machine is to clamp the metal sheet blank on the mold and drive it to rotate by the spindle. The operator controls the cemented carbide spinning wheel to apply continuous pressure on the rotating blank, making the metal produce plastic deformation step by step and gradually attach to the mold surface. In this way, various rotary parts such as cylindrical, conical and hemispherical shapes can be formed. It is a kind of precision metal forming process with simple mold, low cost and high flexibility.
Main Uses & Application Industries
CW-B-800 manual metal spinning machine is a high-performance metal forming equipment with mechanical transmission, compact structure and easy operation. It adopts hydraulic auxiliary tail jack, manual fine-tuning feed and two cemented carbide spinning wheels to ensure stable running and high forming precision. It can process various metal sheets such as aluminum, copper, steel and stainless steel into cylindrical, conical, hemispherical and other rotary parts.
Lighting Fixtures: Production of lamp shades, lamp holders and other rotary parts, utilizing the machine’s 800mm maximum processing diameter and high precision to meet the shaping needs of various lighting components.
Handicrafts: Processing of metal crafts, decorative parts and artworks, taking advantage of the machine’s strong versatility and ability to form diverse rotary shapes, compatible with aluminum, copper and stainless steel materials.
Cookware & Kitchenware: Forming of pots, pans, kettles and other kitchen metal products, relying on the machine’s capacity to process 6mm thick copper/aluminum and 3mm thick stainless steel, ensuring smooth forming and reliable quality.
Hardware Accessories: Manufacturing of hardware components, connectors and rotary fittings, leveraging the 4-jaw manual chuck’s accurate centering and 40KN tail force for stable clamping, improving processing efficiency.
Metal Packaging: Processing of metal cans, bottle caps and packaging containers, utilizing the 100mm spindle through-hole and 600mm tail stroke to expand processing range and adapt to different packaging sizes.
Other Industries: Suitable for small and medium-sized enterprises, processing workshops and prototype development in machinery, auto parts and decorative metal industries, with the advantages of easy operation, low cost and 1200KG high-rigidity structure for stable long-term operation.
Key Features & Advantages
The CW-B-800 manual metal spinning machine is a professional metal forming equipment tailored for small-batch production and sample trial production, integrating excellent performance and humanized design with the following core features:
Structural & Power Configuration: Adopts a stable mechanical transmission structure, equipped with a 5.5KW high-power motor to provide sufficient power for continuous and stable operation. The machine weighs 1200KG, featuring high rigidity and strong load-bearing capacity, effectively avoiding vibration during high-speed processing.
Processing Capacity: Boasts a maximum processing sheet diameter of 800mm, capable of handling aluminum and copper blanks up to 6mm thick, and stainless steel blanks up to 3mm thick, meeting diverse metal forming needs for different thicknesses and materials.
Spindle & Chuck Performance: The spindle speed ranges from 30 to 1000rpm with three-speed adjustment, which can be flexibly adjusted according to material types and processing requirements. Equipped with a 4-jaw manual chuck for accurate centering of blanks, ensuring high processing precision, and a 100mm spindle through-hole to expand the processing range for longer workpieces.
Core Components: Furnished with 2 cemented carbide spinning wheels, featuring high hardness, wear resistance and long service life, ensuring consistent and precise forming effect. Equipped with a hydraulic auxiliary tail jack (40KN tail force, 600mm tail stroke) for firm and stable clamping of blanks, reducing manual labor intensity.
Humanized Design: Comes with manual fine-tuning feed for precise operation control, enabling operators to adjust the spinning wheel position accurately. Equipped with a dust cover to prevent dust and debris from entering the machine, protecting internal components and ensuring a clean processing environment.
Advantages
High Precision & Stability: The combination of 4-jaw manual chuck, cemented carbide spinning wheels and stable mechanical structure ensures accurate centering and precise forming, effectively reducing workpiece error and improving product qualification rate.
Strong Versatility: Suitable for processing various metal materials (aluminum, copper, steel, stainless steel) and forming cylindrical, conical, hemispherical and other axisymmetric rotary parts, adapting to multiple processing scenarios.
Efficient & Labor-Saving: The 5.5KW motor provides sufficient power, and the hydraulic auxiliary tail jack simplifies the blank clamping process, reducing manual labor intensity and improving processing efficiency, especially suitable for small-batch production and sample trial production.
Durable & Reliable: High-quality cemented carbide spinning wheels and 1200KG high-rigidity machine body ensure long service life; the dust cover protects internal components, reducing maintenance costs and extending the machine’s service life.
Flexible & Practical: Three-speed spindle adjustment and 100mm spindle through-hole enhance processing flexibility, adapting to different material thicknesses and workpiece sizes; manual fine-tuning feed allows for precise operation, meeting the requirements of prototype manufacturing and small-batch customization.
Cost-Effective: Simple mold requirements and low maintenance costs, combined with high processing efficiency and stable performance, make it an ideal choice for small and medium-sized enterprises, processing workshops and manufacturers engaged in metal spinning and forming
Images & Video
Overall images: front view, side view and top view of the machine, showing the compact structure and exquisite appearance.
Detail images: core components such as spindle, spinning wheel, tailstock, showing the high-quality manufacturing process.
Working videos: the whole process of workpiece processing, showing the high precision, high efficiency and stable operation of the machine.
Finished product samples: various axisymmetric parts processed by the machine, such as cylindrical parts, conical parts, spherical parts, etc., showing the processing effect and product quality.
Why Choose Us ?
Professional Manufacturer with Rich Experience:We are a professional manufacturer of CNC metal spinning machines with over 30 years of experience in R&D and production. We focus on the development of high-precision metal processing equipment, and have established a complete, mature production and quality control system.
Advanced Production & Testing Equipment: Equipped with advanced production equipment and strict testing procedures, each CW-B-800 Manual Metal Spinning Machine undergoes multiple rounds of testing before leaving the factory to ensure that the performance and quality meet the standard.
Custom Design & OEM Service: According to the specific processing needs of customers (such as processing range, material type, automation level, etc.), we provide personalized custom design and OEM service to meet the diverse needs of different industries.
Global Market Recognition: Our products have passed CE/ISO certification, are exported to Europe, America, the Middle East, Southeast Asia and other regions, and have won unanimous praise from customers for their stable performance and reliable quality.
Packaging & Shipping
Packaging: Standard export wooden case packaging, with moisture-proof, shock-proof and anti-collision treatment inside, to avoid damage to the machine during transportation.
Transportation: Support sea transportation, land transportation and other modes of transportation, according to the customer's location and demand to choose the most suitable transportation scheme, and provide complete customs clearance documents.
Delivery Time: 7-20 days (depending on the order quantity and customization requirements), and we will timely feedback the transportation progress to the customer during the transportation process.
FAQ
What types of machinery and equipment do you provide?
CO-WIN provides various types of mechanical equipment, including hydraulic presses, CNC spinning machines,rotary cutting machines, trimming equipment,deburring machines, crimping machines, etc.
We can also provide customized mechanical equipment solutions according to customer needs.
What is your machinery and equipment production process?
Our mechanical equipment production process includes design, manufacturing, assembly, debugging and other links. During the manufacturing process, we strictly follow professional standards and quality control processes to ensure that each piece of equipment has stable performance and reliable quality.
Does your equipment use advanced technology?
Yes, CO-WIN introduces and adopts the most advanced technology to ensure that our machinery and equipment have efficient, precise and stable performance. Whether it is in hydraulic control, CNC machining or automation control, we always maintain the leading level.
How to ensure the quality of your products?
We strictly control every aspect of the production process of mechanical equipment, from material selection to production, processing, assembly and testing, and strictly follow the quality management system. Each piece of equipment undergoes strict inspection and testing before leaving the factory to ensure that its quality and performance meet customer requirements.
Do you accept customized orders?
Yes, we can provide customized mechanical equipment solutions according to customer needs. Whether it is special specifications, specific functions or special requirements, we can tailor it to meet the individual needs of our customers.
What is the maximum processing capacity of the CW-B-800 manual metal spinning machine?
The maximum processing sheet diameter of this machine is 800mm. It can process aluminum and copper blanks up to 6mm thick, and stainless steel blanks up to 3mm thick, meeting the needs of most small- batch metal forming tasks.
What is the spindle speed range of the CW-B-800, and how to adjust it?
The spindle speed ranges from 30 to 1000rpm, with three-speed adjustment. You can flexibly adjust the speed according to the type and thickness of the metal material to ensure stable and precise processing.
What are the key configurations of the CW-B-800, and what are their functions?
The core configurations include hydraulic auxiliary tail jack (40KN tail force, 600mm tail stroke) for stable clamping of blanks; manual fine-tuning feed for precise operation; dust cover for protecting the machine and ensuring processing cleanliness; 2 cemented carbide spinning wheels for high-precision forming; 4-jaw manual chuck for accurate centering; and 5.5KW motor for sufficient power supply.
What should I do if the machine vibrates during operation?
First, check whether the machine is fixed firmly on the ground; then check whether the metal blank is clamped correctly and centered; if the vibration is still obvious, adjust the spindle speed appropriately or check the wear of the spinning wheels and replace them if necessary.
