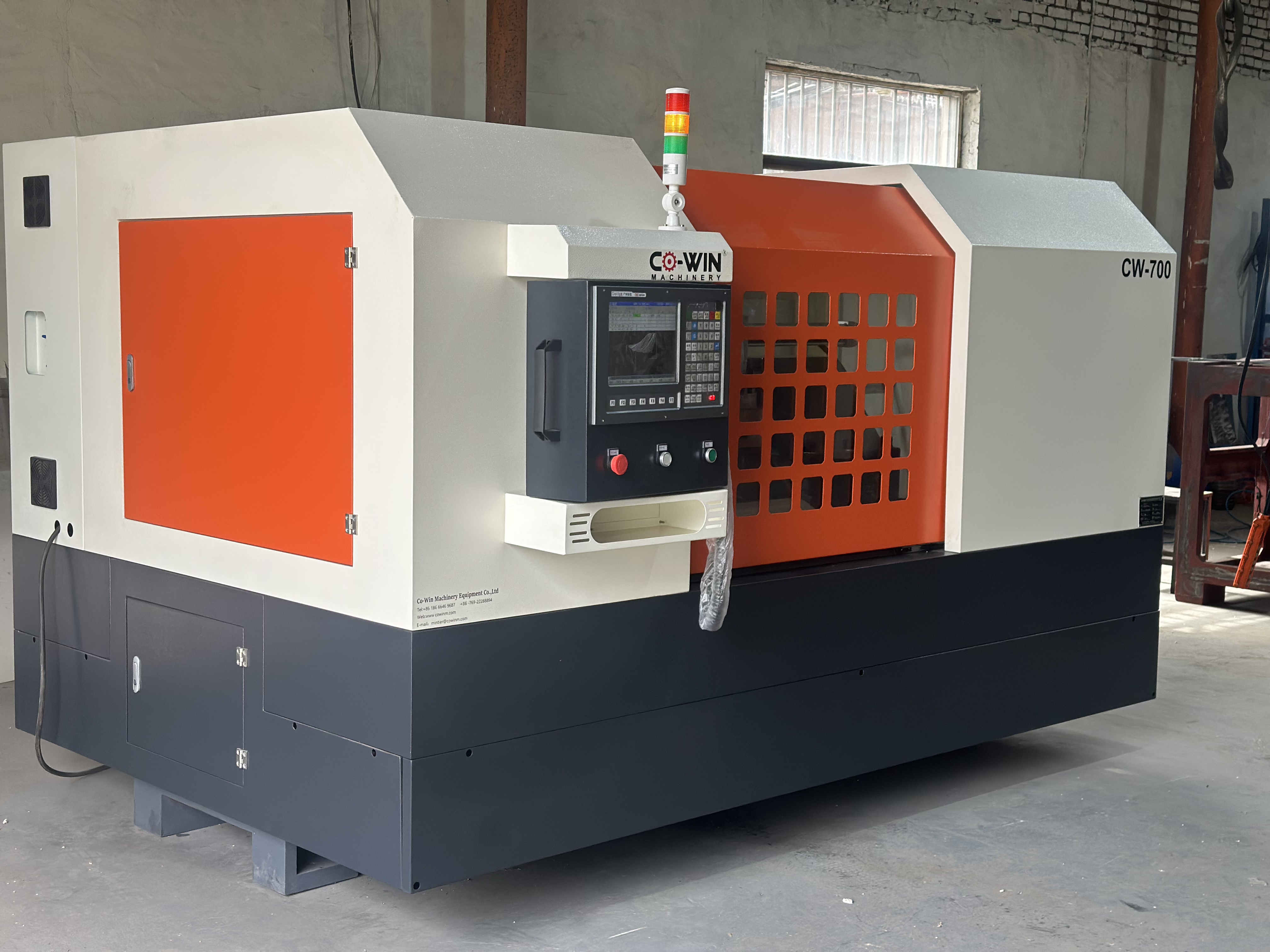

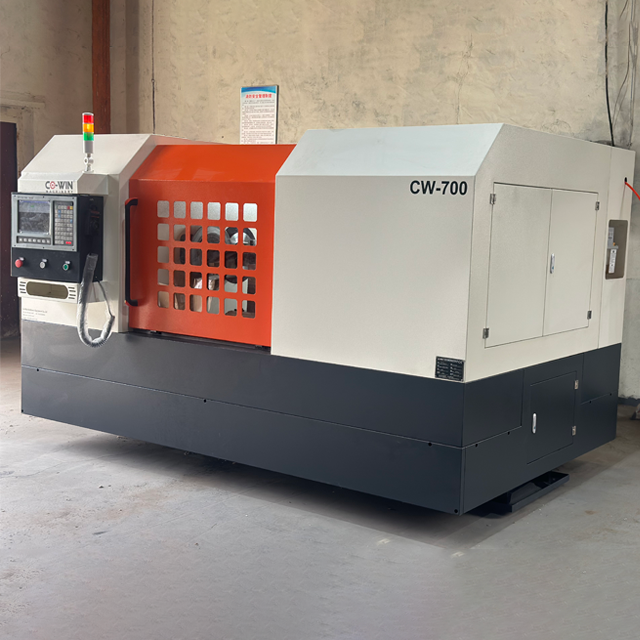

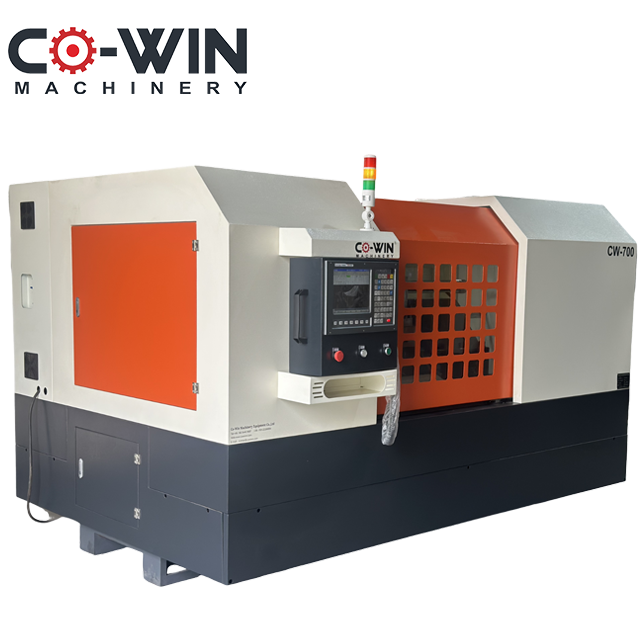

| CW-700 Two-Wheel Counter-Rotating CNC Spinning Machine | |||
Maximum diameter ofmaterial sheet 料片最大直径 | 760mm | Y-axis servo motor Y轴伺服电机 | 15NM |
Spindle over drag platecenter height 主轴过拖板中心高 | Diameter 600mm 直径600mm | Number of tool positions 刀位数 | 4+4=8 |
Thickness of copper and aluminum blank 铜铝毛坯厚度 | 5mm | Spindle motor 主电机 | 11KW |
Carbon steel thickness 碳钢毛坯厚度 | 3.0mm | Spindle inverter 主轴变频器 | 11KW |
Stainless steel blank thickness 不锈钢毛坯厚度 | 2.0mm | Servo motors, drives 伺服电机、驱动器 | 15NM |
Spindle speed (frequency conversion) 主轴转速(变频调速) | 100-1000 rpm 100-1000转/分 | CNC system CNC系统 | Special system for spinningmachine 旋压机专用系统 |
Main motor power 主电机功率 | 11KW | Ball Screws 滚珠丝杆 | 4005 |
Tailstock travel 尾座行程 | 400mm | Heavy duty ball linear guideway 重负荷滚珠线性导轨 | 35CA |
X-axis travel (longitudinal) X轴行程(纵向) | 600mm | 4-position turret (built-in motor) 4位刀塔(内置电机) | 192100 |
Y-axis travel (transverse) Y轴行程(横向) | 350mm+350mm | Tailstock booster cylinder 尾座增压缸 | 3T |
X-axis servo motor X轴伺服电机 | 15NM | Rotary cutter wheel 旋压刀轮 | R1-R30 |
Machine profile (length, width and height) 机器外形(长宽高) | 2400*1700*1700mm | ||
SPINNING PROCESS PRINCIPLES
The Spinning Chipless Forming Process Is To Make The Metal Circle Blank, Tube Billet And Pre-formed Material Enter A Rotary Motion. The Rotating Metal Blank Is Squeezed By The Forming Roller Ano The Metal Begins To Flow. This Process Can Obtain A Variety Of Hollow Bodies With Complex Generatrix Shapes, Small Tolerance Ranges, Excellent Material Properties Ano Surface Quality With Minimal Tooling Cost. The Spinning Process Accurately Determines The Wall Thickness Ano Profile Of The Work Piece Ano Accurately Repeats The Wall Thickness Ano Contour.
Main Uses & Application Industries
Aerospace
Applications: Aircraft engine components, fuel tanks, airframe parts, gas cylinders, turbine parts.
Advantage: Processes high-strength titanium & aluminum alloys; delivers high-precision, lightweight, reliable components for aerospace.
Automotive Manufacturing
Applications: Wheel hubs, exhaust parts, driveshaft components, shock absorber housings.
Benefits:Lightweight design, improved fuel efficiency, tight tolerances, and consistent mass production.
Energy and Power
Applications: Wind turbine components, gas turbines, nuclear power equipment, high-pressure gas cylinders.
Benefits: Forms large, round & tapered parts with exceptional strength, durability, and pressure resistance.
Home Appliance Industry
Applications: Washing machine drums, microwave parts, AC compressor housings, water heater tanks.
Advantage: Efficient, cost-effective, ideal for mass production of standardized metal parts.
Lighting Industry
Applications: Lampshades, reflectors, lamp housings.
Benefits: Produces thin, lightweight, rigid parts with precise shapes for modern lighting designs.
Medical Devices
Applications: Medical gas cylinders, artificial joint components, device housings.
Advantage: High-precision spinning ensures medical-grade safety, stability, and reliability.
Food Processing & Storage
Applications: Stainless steel tanks, processing equipment, cooking utensils.
Advantage: Food-safe materials, corrosion resistance, hygiene compliance, easy cleaning.
Construction
Applications: Ventilation ducts, chimneys, architectural decorations, tower structures.
Advantage: Processes large-scale metal parts; meets durability, strength, and aesthetic requirements.
Marine & Ship
Applications: Marine propulsion parts, ship structural components, offshore equipment.
Advantage: Large-size, corrosion-resistant parts optimized for harsh marine environments.
Key Features & Advantages
Easy Operation & Maintenance: Equipped with a professional CNC control system and a humanized operation interface, it supports manual adjustment, semi-automatic and fully automatic operation modes, and can complete programming, parameter input and processing status monitoring easily, with low requirements for operators; the overall structure is compact, the key components are standardized, and daily maintenance only needs regular inspection and lubrication.
Strong Versatility & Customization: Suitable for processing various metal materials such as aluminum, copper, stainless steel and titanium alloy, and can process workpieces of different shapes and sizes by replacing molds and adjusting parameterssuperscript:5; can provide customized design and OEM services according to customer specific processing needs, such as adjusting processing range and adding automatic loading and unloading system.
Long Service Life & Reliable Quality: The bed is made of high-strength casting, with strong load-bearing capacity and good shock resistance, which can withstand long-term high-intensity work; key components such as the control system and hydraulic system adopt well-known brand products, with CE/ISO certification, ensuring stable performance and long service life.
Strong Ability to Process Complex Parts: Through multi-axis linkage and precise path control, it can process complex curved surfaces, thin-walled structures and special-shaped opening parts that are difficult to realize by traditional processes, and improve the mechanical properties and structural strength of products through spinning formingsuperscript:7; the material grain structure is optimized during the forming process, enhancing the strength, hardness and fatigue resistance of the workpiece.
Machine Body: Made of high-strength casting, providing strong rigidity and stability to ensure the precision of the machine during processing.
Spindle System: Drives the mandrel/workpiece to rotate at high speed, adopts large-thrust roller bearings and oil cooling structure to ensure stable and long-term operation.
Spinning Wheel Feeding System: Equipped with servo hydraulic control, with high precision, large thrust and stability, the horizontal and vertical feeding adopts precision ball screw pairs, which can accurately control the movement trajectory and pressure of the spinning wheel.
Mandrel/Tailstock System: The mandrel defines the final shape of the workpiece, and the tailstock provides support at the other end of the workpiece to ensure the stability of the workpiece during rotation.
CNC Control System: The "brain" of the machine, which receives processing program instructions, processes data and controls the coordinated movement of each axis, supporting CAD drawing programming and mandrel copying functions.
Auxiliary Devices: Equipped with automatic loading and unloading, lubrication and cooling, safety protection cover and other devices to improve production safety and efficiency.
Images & Video
Overall images: front view, side view and top view of the machine, showing the compact structure and exquisite appearance.
Detail images: core components such as spindle, spinning wheel, CNC control panel and tailstock, showing the high-quality manufacturing process.
Working videos: the whole process of workpiece processing, showing the high precision, high efficiency and stable operation of the machine.

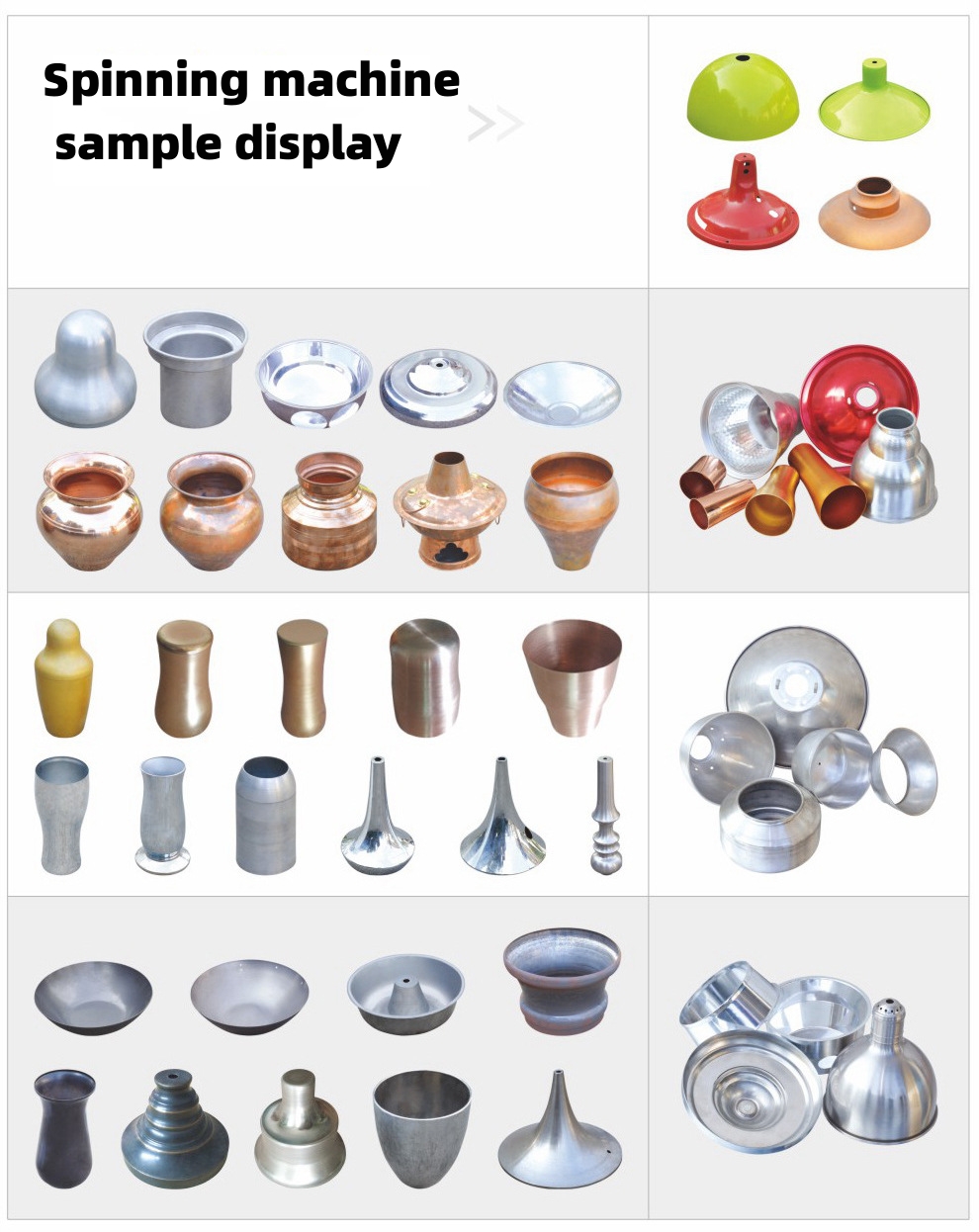

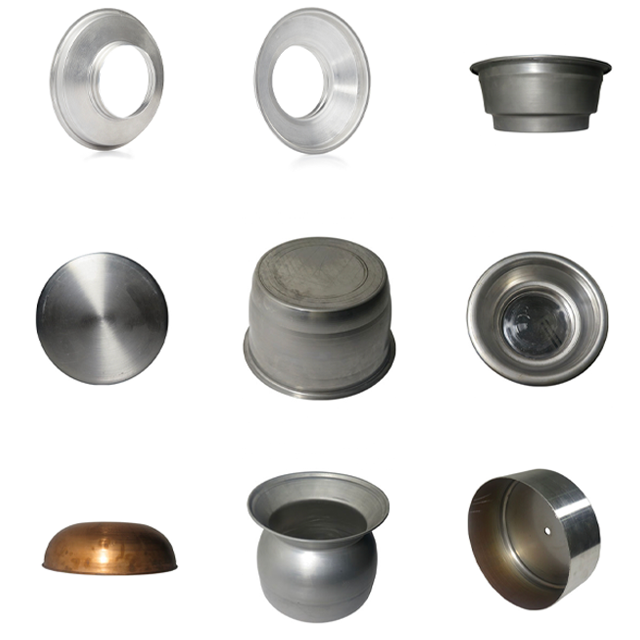

Finished product samples: various axisymmetric parts processed by the machine, such as cylindrical parts, conical parts, spherical parts, etc., showing the processing effect and product quality.
Why Choose Us ?
Professional Manufacturer with Rich Experience:We are a professional manufacturer of CNC metal spinning machines with over 30 years of experience in R&D and production. We focus on the development of high-precision metal processing equipment, and have established a complete, mature production and quality control system.

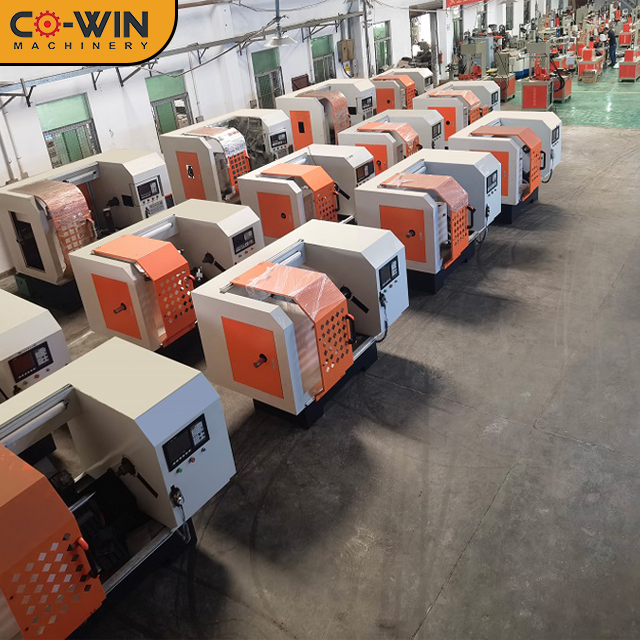

Advanced Production & Testing Equipment: Equipped with advanced production equipment and strict testing procedures, each CW-700 CNC Metal Spinning Machine undergoes multiple rounds of testing before leaving the factory to ensure that the performance and quality meet the standard.
Custom Design & OEM Service: According to the specific processing needs of customers (such as processing range, material type, automation level, etc.), we provide personalized custom design and OEM service to meet the diverse needs of different industries.

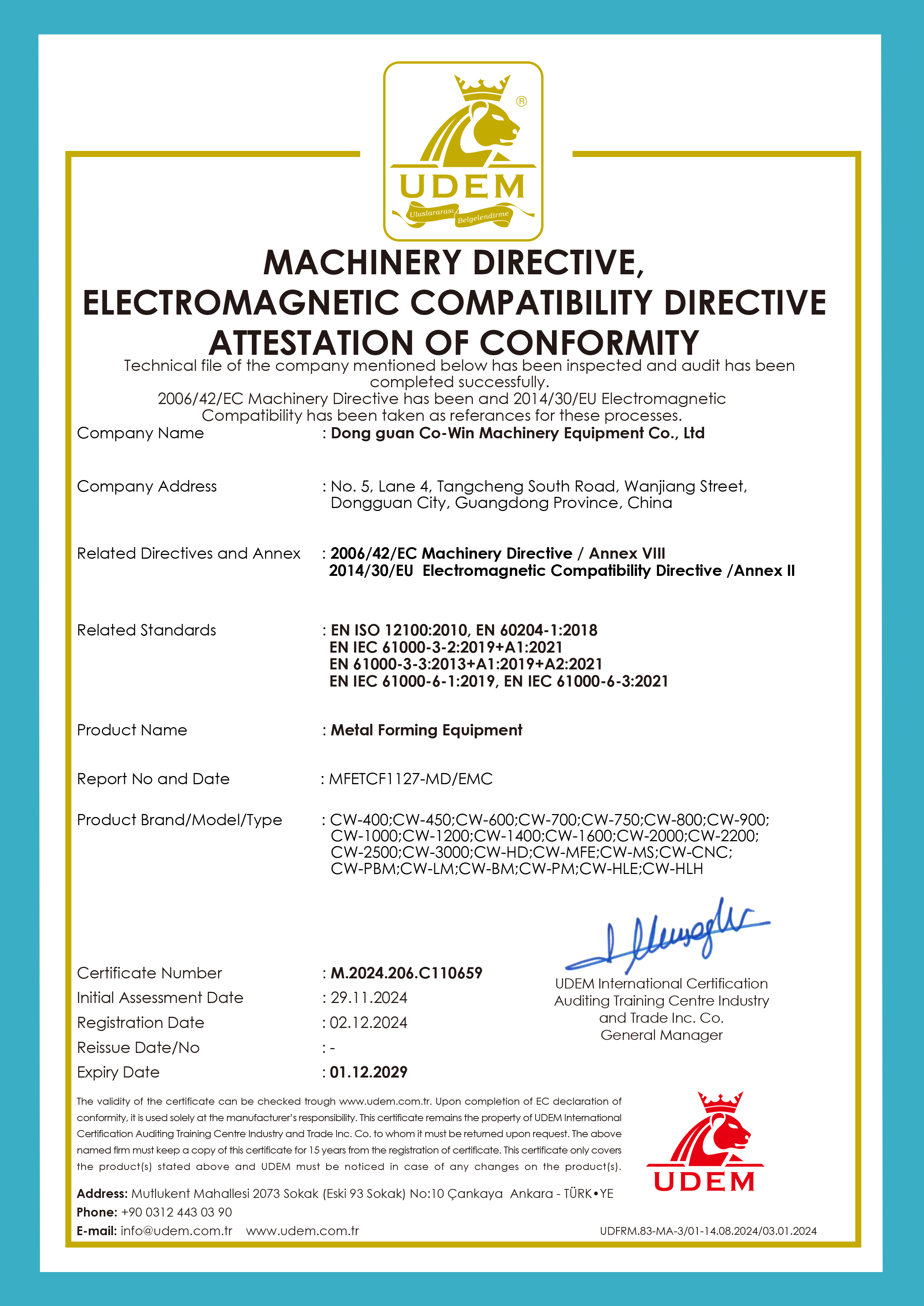

Global Market Recognition: Our products have passed CE/ISO certification, are exported to Europe, America, the Middle East, Southeast Asia and other regions, and have won unanimous praise from customers for their stable performance and reliable quality.
Packaging & Shipping

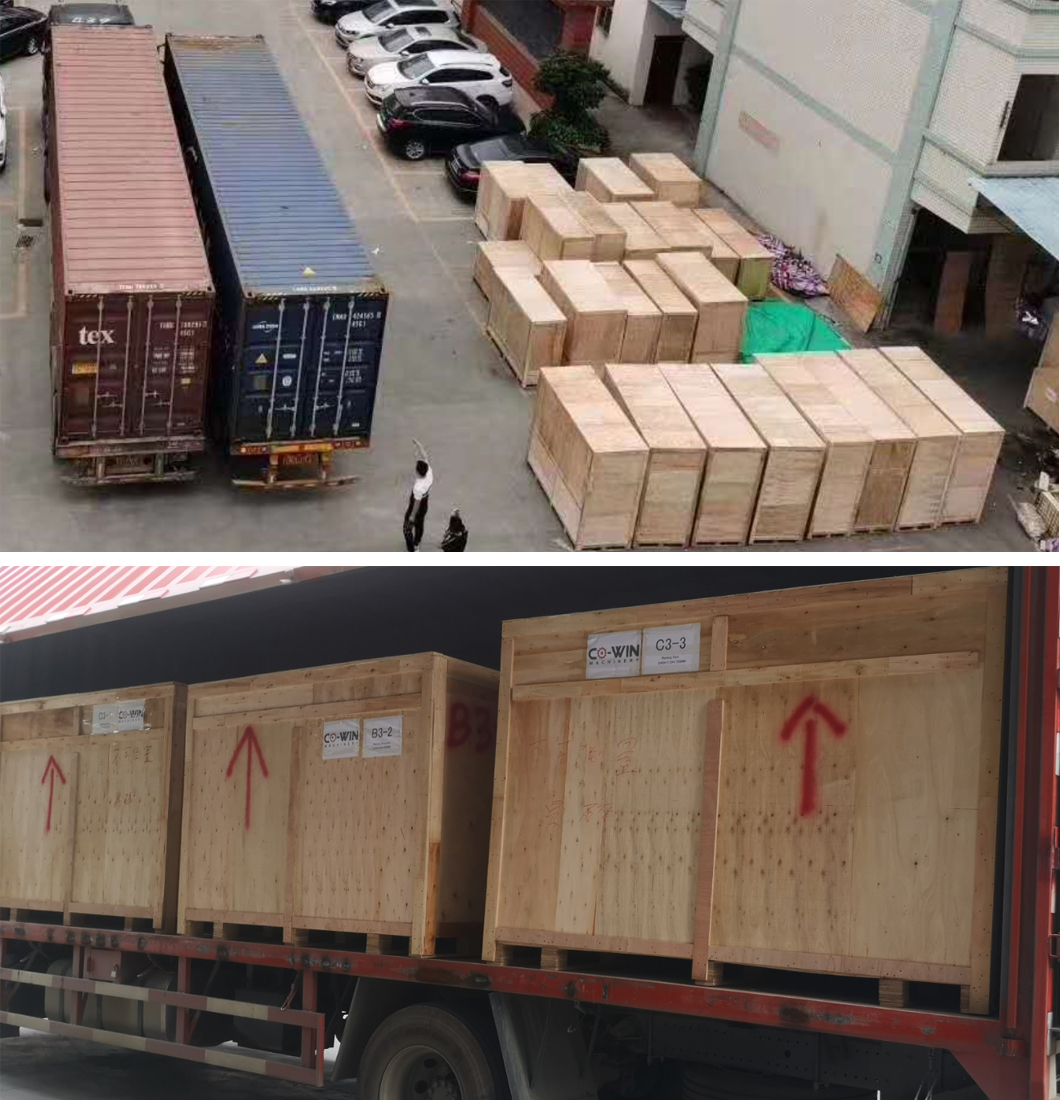

Packaging: Standard export wooden case packaging, with moisture-proof, shock-proof and anti-collision treatment inside, to avoid damage to the machine during transportation.
