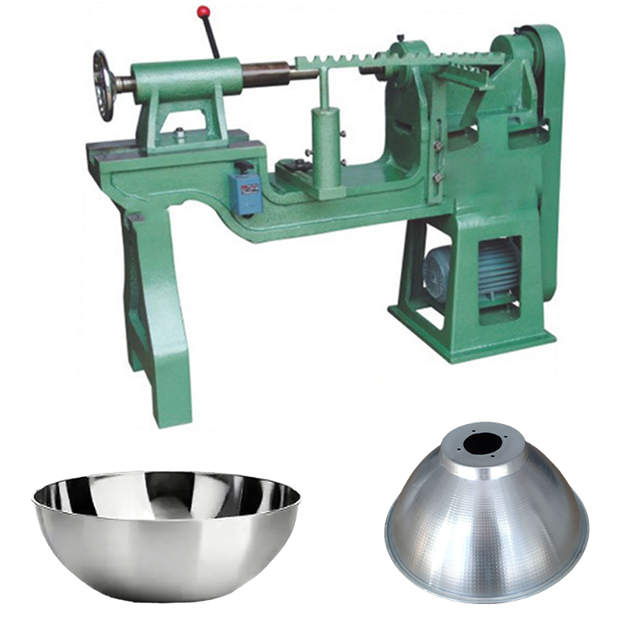

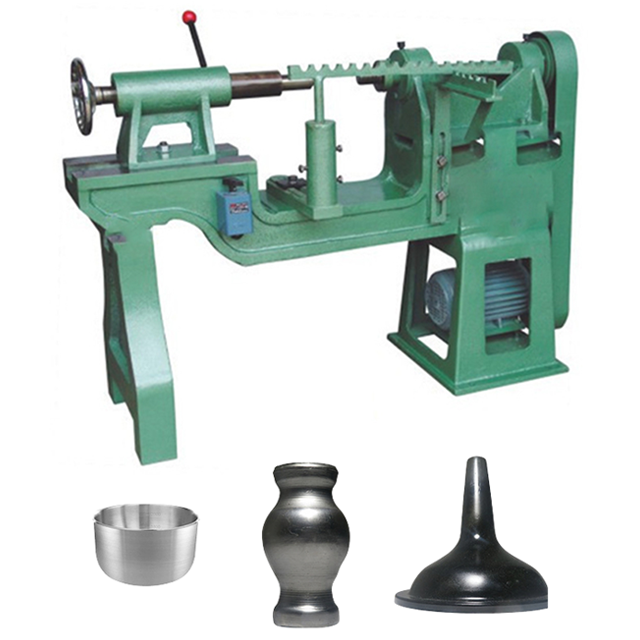

CW-B-1200
CO-WIN
| Manual Metal Spinning Machine | |||
| Model | CW-B-600 | CW-B-800 | CW-B-1200 |
| Maximum machining diameter (mm) | 600 | 800 | 1200 |
| Maximum machining length (mm) | 600 | 800 | 1000 |
| Thickness of processed material (mm) | Aluminum ≤ 5.0 mm Steel ≤ 2.5 mm | Aluminum ≤ 6.0 mm Steel ≤ 3.0 mm | Aluminum ≤ 8.0 mm Steel ≤ 4.5 mm |
| Spindle speed (rpm) | 40-1200 RPM Manual Stepless Speed Regulation | 30-1000 RPM Manual Stepless Speed Regulation | 20-800 RPM Mmanual stepless speed Regulation |
| Tail-end force (KN) | 30 | 40 | 50 |
| Tail top travel (mm) | 500 | 600 | 800 |
| Number of spinning wheels (pieces) | 2 | 2 | 3 |
| Rotary wheel material | cemented carbide | cemented carbide | High-speed steel reinforced |
| Spindle through-hole diameter (mm) | 82 | 100 | 120 |
| Chuck type | Three-jaw manual chuck | Four-jaw manual chuck | Four-jaw manual chuck |
Machine tool dimensions (length × width × height, mm) | 1800x600x1100 | 2000x680x1200 | 2500x800x1350 |
| Machine tool weight (kg) | 900 | 1200 | 1800 |
| Core configuration | 4 | 5.5 | 7.5 |
Short Description
CW-B-1200 heavy-duty manual metal spinning machine: 1200mm max processing diameter, 1000mm max length, 7.5KW motor, 3 high-speed steel reinforced spinning wheels & dual hydraulic tailstock (50KN, 800mm stroke). Infinitely variable speed (20-800rpm), 4-jaw chuck, 120mm spindle through-hole, processes 8mm Al/Cu & 4.5mm stainless steel, with reinforced feed & fully enclosed protection, ideal for heavy-duty metal forming.

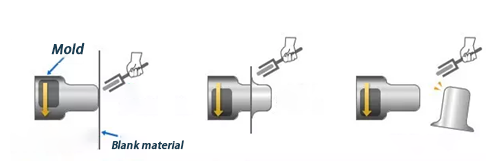

Manual SPINNING PROCESS PRINCIPLES
The working principle of the manual metal spinning machine is to clamp the metal sheet blank on the mold and drive it to rotate by the spindle. The operator controls the cemented carbide spinning wheel to apply continuous pressure on the rotating blank, making the metal produce plastic deformation step by step and gradually attach to the mold surface. In this way, various rotary parts such as cylindrical, conical and hemispherical shapes can be formed. It is a kind of precision metal forming process with simple mold, low cost and high flexibility.
Main Uses & Application Industries
CW-B-1200 manual metal spinning machine is a heavy-duty, high-performance metal forming equipment with mechanical transmission, strong rigidity and easy operation. It adopts dual hydraulic tailstock, reinforced feed mechanism and three high-speed steel reinforced spinning wheels to ensure stable running and high forming precision. It can process various metal sheets such as aluminum, copper, steel and stainless steel into cylindrical, conical, hemispherical and other rotary parts, suitable for heavy-duty small-batch production, sample trial production and prototype manufacturing.

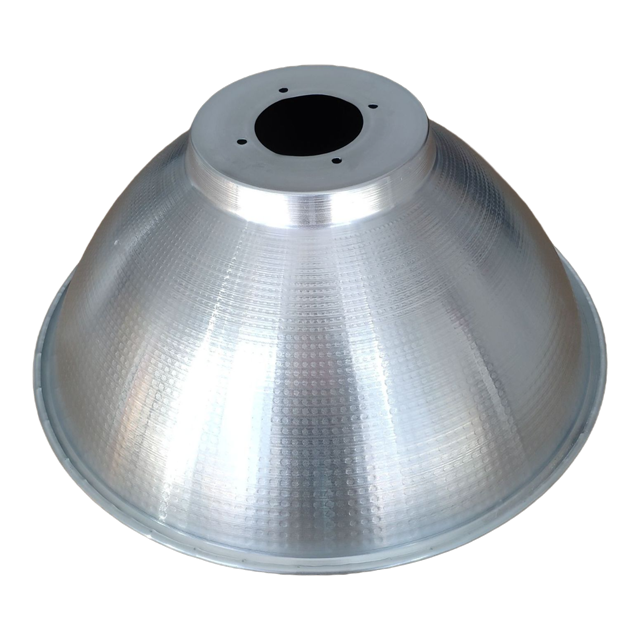

Lighting Fixtures: Production of lamp shades, lamp holders and other rotary parts.
Handicrafts: Processing of metal crafts, decorative parts and artworks.
Cookware & Kitchenware: Forming of pots, pans, kettles and other kitchen metal products.
Hardware Accessories: Manufacturing of hardware components, connectors and rotary fittings.
Metal Packaging: Processing of metal cans, bottle caps and packaging containers.
Other Industries: Suitable for small and medium-sized enterprises, processing workshops and prototype development in machinery, auto parts and decorative metal industries.
Key Features & Advantages
The CW-B-1200 manual metal spinning machine is a professional metal forming equipment tailored for small-batch production and sample trial production, integrating excellent performance and humanized design with the following core features:
Structural & Power Configuration: Adopts a stable mechanical transmission structure, equipped with a 7.5KW high-power motor to provide sufficient power for continuous and stable operation. The machine weighs 1800KG, featuring high rigidity and strong load-bearing capacity, effectively avoiding vibration during processing.
Processing Capacity: Boasts a maximum processing sheet diameter of 1200mm and a maximum processing length of 1000mm, capable of handling aluminum and copper blanks up to 8mm thick, and stainless steel blanks up to 4.5mm thick, meeting diverse heavy-duty metal forming needs.
Spindle & Chuck Performance: The spindle speed ranges from 20 to 800rpm with infinitely variable speed, which can be flexibly adjusted according to material types and processing requirements for precise control. Equipped with a 4-jaw manual chuck for accurate centering of blanks, ensuring high processing precision, and a 120mm spindle through-hole to expand the processing range for longer workpieces.
Core Components: Furnished with 3 high-speed steel reinforced spinning wheels, featuring high hardness, wear resistance and long service life, ensuring consistent and precise forming effect. Equipped with a dual hydraulic tailstock with 50KN tail force and 800mm tail stroke for firm and stable clamping of large-size blanks, reducing manual labor intensity.
Humanized & Safe Design: Comes with a reinforced feed mechanism for smooth and precise operation control, enabling operators to adjust the spinning wheel position accurately. Equipped with fully enclosed protection to prevent dust, debris and operational risks, protecting operators and internal components, ensuring a safe and clean processing environment.
Images & Video
Overall images: front view, side view and top view of the machine, showing the compact structure and exquisite appearance.
Detail images: core components such as spindle, spinning wheel, tailstock, showing the high-quality manufacturing process.
Working videos: the whole process of workpiece processing, showing the high precision, high efficiency and stable operation of the machine.
Finished product samples: various axisymmetric parts processed by the machine, such as cylindrical parts, conical parts, spherical parts, etc., showing the processing effect and product quality.
Why Choose Us ?
Professional Manufacturer with Rich Experience:We are a professional manufacturer of CNC metal spinning machines with over 30 years of experience in R&D and production. We focus on the development of high-precision metal processing equipment, and have established a complete, mature production and quality control system.
Advanced Production & Testing Equipment: Equipped with advanced production equipment and strict testing procedures, each CW-B-1200 Manual Metal Spinning Machine undergoes multiple rounds of testing before leaving the factory to ensure that the performance and quality meet the standard.
Custom Design & OEM Service: According to the specific processing needs of customers (such as processing range, material type, automation level, etc.), we provide personalized custom design and OEM service to meet the diverse needs of different industries.
Global Market Recognition: Our products have passed CE/ISO certification, are exported to Europe, America, the Middle East, Southeast Asia and other regions, and have won unanimous praise from customers for their stable performance and reliable quality.
Packaging & Shipping
Packaging: Standard export wooden case packaging, with moisture-proof, shock-proof and anti-collision treatment inside, to avoid damage to the machine during transportation.
Transportation: Support sea transportation, land transportation and other modes of transportation, according to the customer's location and demand to choose the most suitable transportation scheme, and provide complete customs clearance documents.
Delivery Time: 7-20 days (depending on the order quantity and customization requirements), and we will timely feedback the transportation progress to the customer during the transportation process.
FAQ
What types of machinery and equipment do you provide?
CO-WIN provides various types of mechanical equipment, including hydraulic presses, CNC spinning machines,rotary cutting machines, trimming equipment,deburring machines, crimping machines, etc.
We can also provide customized mechanical equipment solutions according to customer needs.
What is your machinery and equipment production process?
Our mechanical equipment production process includes design, manufacturing, assembly, debugging and other links. During the manufacturing process, we strictly follow professional standards and quality control processes to ensure that each piece of equipment has stable performance and reliable quality.
Does your equipment use advanced technology?
Yes, CO-WIN introduces and adopts the most advanced technology to ensure that our machinery and equipment have efficient, precise and stable performance. Whether it is in hydraulic control, CNC machining or automation control, we always maintain the leading level.
How to ensure the quality of your products?
We strictly control every aspect of the production process of mechanical equipment, from material selection to production, processing, assembly and testing, and strictly follow the quality management system. Each piece of equipment undergoes strict inspection and testing before leaving the factory to ensure that its quality and performance meet customer requirements.
Do you accept customized orders?
Yes, we can provide customized mechanical equipment solutions according to customer needs. Whether it is special specifications, specific functions or special requirements, we can tailor it to meet the individual needs of our customers.
What is the maximum processing capacity of the CW-B-1200 manual metal spinning machine?
The maximum processing sheet diameter of this machine is 1200mm. It can process aluminum and copper blanks up to 8mm thick, and stainless steel blanks up to 4.5mm thick, meeting the needs of most small- batch metal forming tasks.
What is the spindle speed range of the CW-B-1200, and how to adjust it?
The spindle speed ranges from 20 to 800rpm, with stepless-speed justment. You can flexibly adjust the speed according to the type and thickness of the metal material to ensure stable and precise processing.
What are the key configurations of the CW-B-1200, and what are their functions?
Its core configurations include dual hydraulic tailstock (50KN tail force, 800mm tail stroke) for stable clamping of large-size blanks; reinforced feed mechanism for smooth and precise operation; fully enclosed protection for operator and component safety; 3 high-speed steel reinforced spinning wheels for high- precision forming; 4-jaw manual chuck for accurate centering; and 7.5KW motor for sufficient power supply.
How to maintain the CW-B-1200 to extend its service life?
Regularly check and lubricate the mechanical transmission structure and reinforced feed mechanism; clean the fully enclosed protection cover and machine surface to prevent dust accumulation; check the wear of the high-speed steel reinforced spinning wheels and replace them in time if severely worn; ensure the dual hydraulic tailstock is free of oil leakage and maintain sufficient oil quantity.
What should I do if the machine vibrates during operation?
First, check whether the machine is fixed firmly on the ground; then check whether the metal blank is clamped correctly and centered; if the vibration is still obvious, adjust the spindle speed appropriately or check the wear of the spinning wheels and replace them if necessary.
