CO-WIN
| Model | CW-152 | CW-155 |
| Max. Capacity | Φ12（Solid core) ~Φ20（hollow） | Φ20（Solid core) ~Φ40（hollow） |
| Riveting Press | 1500KG | 5500KG |
| Stroke | 42mm | 42mm |
| Throat Depth | 160mm | 185mm |
| Hydraulic Output | 20-70bar | 20-70bar |
| Power | 1HP，2HP | 2HP，3HP |
| Weight | 350Kg | 550Kg |

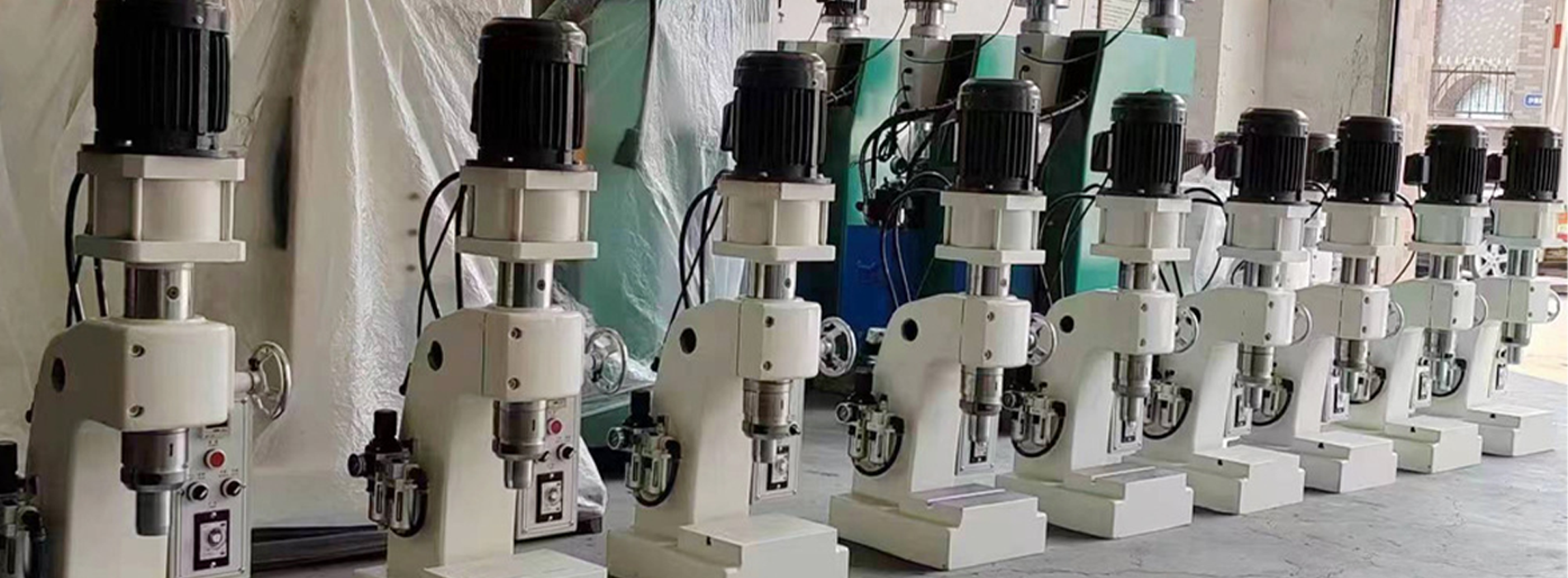

Hydraulic Orbital Riveting Machine is the heavy duty orbital riveting equipment, which driven by hydraulic power, designed as vertical type. Heavy duty industries such as Blender mixing knife, Brake pad riveting, baby stroller, vehicle production, caster wheel, truck door hinges, etc. It adopts the advanced of orbital technology-advanced cold rolling technology. It is applicable for the huge diameter of rivets riveting processing.
Application
Light industries such as Blender mixing knife, Brake pad riveting, baby stroller, etc.
| Model | CW-152 | CW-155 |
| Max. Capacity | Φ12（Solid core) ~Φ20（hollow） | Φ20（Solid core) ~Φ40（hollow） |
| Riveting Press | 1500KG | 5500KG |
| Stroke | 42mm | 42mm |
| Throat Depth | 160mm | 185mm |
| Hydraulic Output | 20-70bar | 20-70bar |
| Power | 1HP，2HP | 2HP，3HP |
| Weight | 350Kg | 550Kg |
Hydraulic Orbital Riveting Machine is the heavy duty orbital riveting equipment, which driven by hydraulic power, designed as vertical type. Heavy duty industries such as Blender mixing knife, Brake pad riveting, baby stroller, vehicle production, caster wheel, truck door hinges, etc. It adopts the advanced of orbital technology-advanced cold rolling technology. It is applicable for the huge diameter of rivets riveting processing.
Application
Light industries such as Blender mixing knife, Brake pad riveting, baby stroller, etc.
