| Quantity: | |
|---|---|

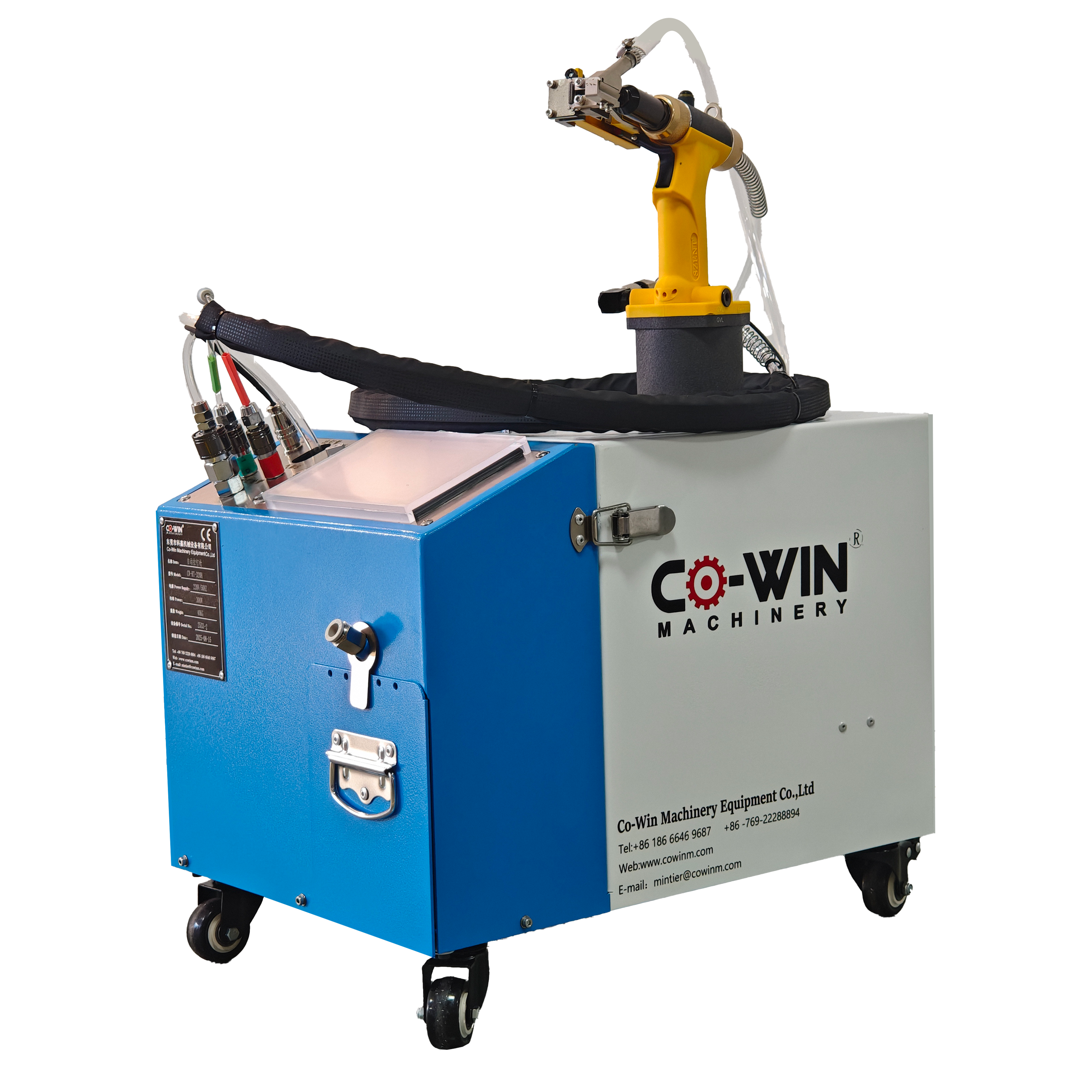

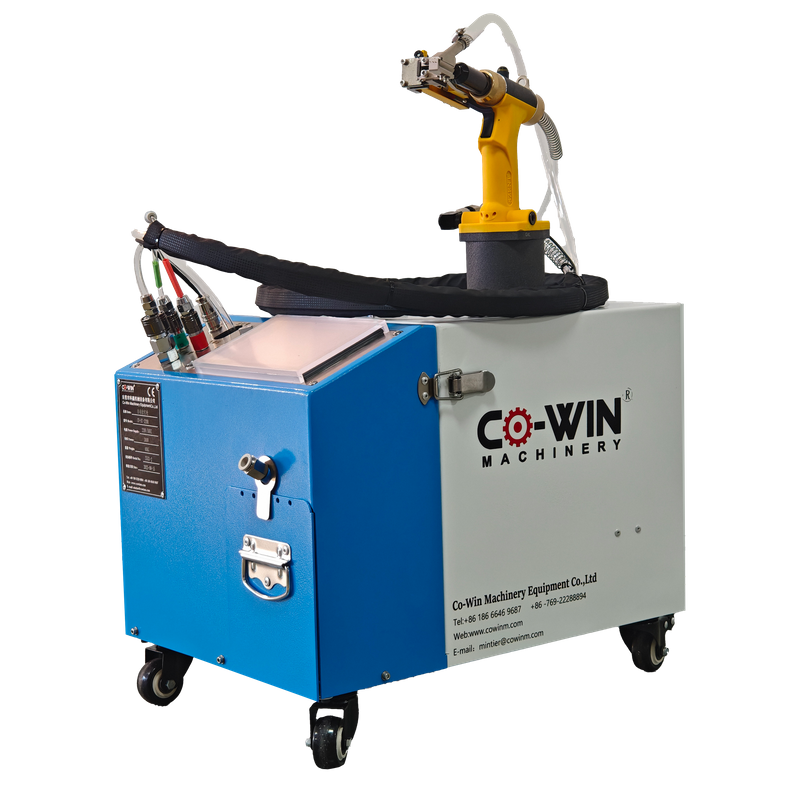

CW-RT-320H
CO-WIN
| model | CW-RT-320H | Input voltage | 220V |
| Dimensions | 440x350x420mm | low electrical voltage | 24V |
| equipment weight | 45KG | working pressure | 6KG |
| Silo capacity | 4500 capsules | Rated air pressure | 8KG |
| rated power | 350W | Material tube length | 2000-3000M |
| pull speed | 1.2-1.5 seconds/grain | Nail output speed | 50-60 capsules/minute |
| Nail gun | SG-30 | Nail withdrawal tube length | 3.2MM |

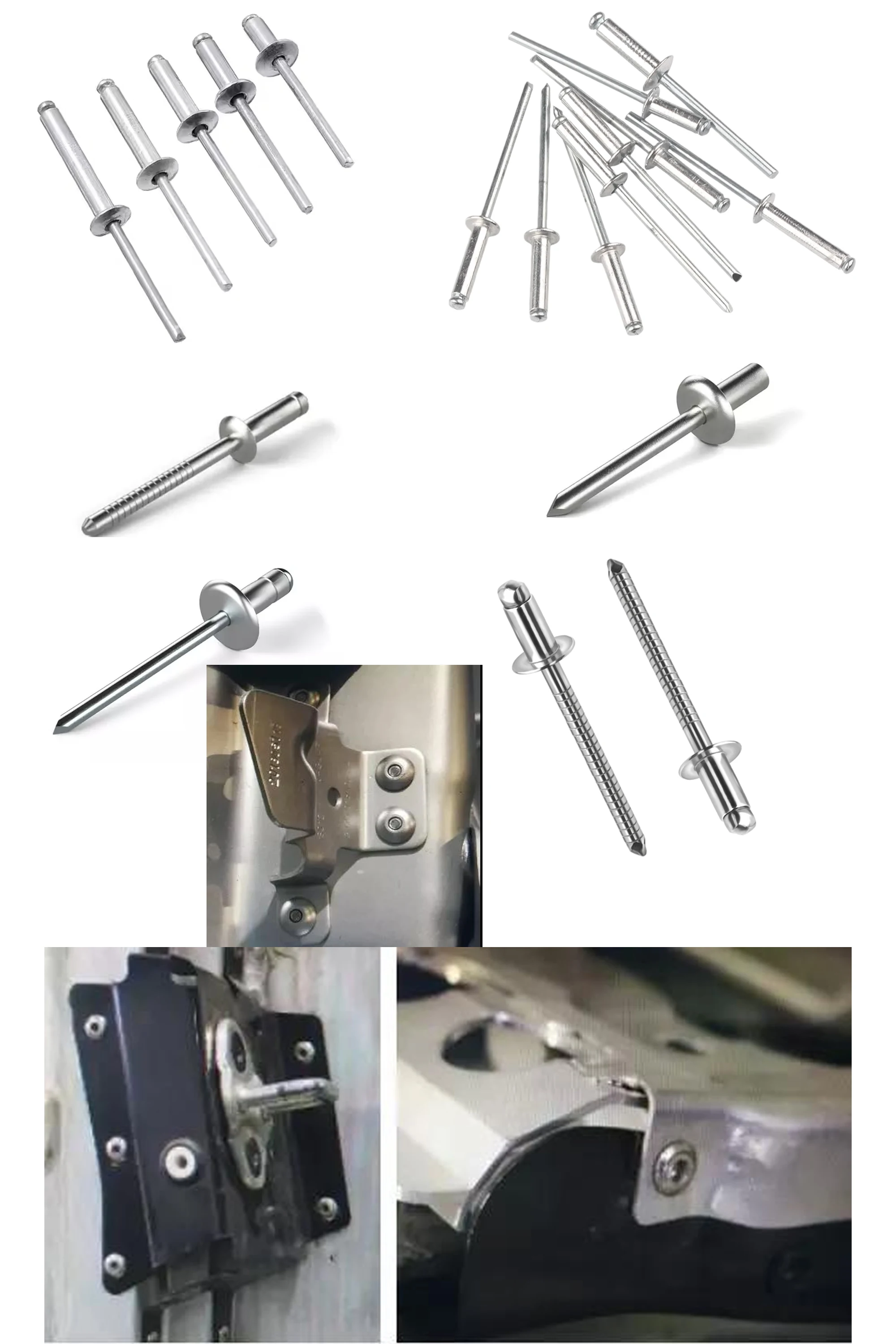

This automatic feeding blind rivet machine is suitable for a wide range of industries, including automotive manufacturing (body structural parts, interior brackets, etc.), electronic equipment (precision instruments, consumer electronic components), home appliances (large home appliance frames, kitchen and bathroom equipment), hardware (construction hardware, tool housings), as well as aerospace, rail transportation and other fields. It can process 3-20mm blind rivets to meet the needs of various industries for efficient and precise riveting.
| model | CW-RT-320H | Input voltage | 220V |
| Dimensions | 440x350x420mm | low electrical voltage | 24V |
| equipment weight | 45KG | working pressure | 6KG |
| Silo capacity | 4500 capsules | Rated air pressure | 8KG |
| rated power | 350W | Material tube length | 2000-3000M |
| pull speed | 1.2-1.5 seconds/grain | Nail output speed | 50-60 capsules/minute |
| Nail gun | SG-30 | Nail withdrawal tube length | 3.2MM |
This automatic feeding blind rivet machine is suitable for a wide range of industries, including automotive manufacturing (body structural parts, interior brackets, etc.), electronic equipment (precision instruments, consumer electronic components), home appliances (large home appliance frames, kitchen and bathroom equipment), hardware (construction hardware, tool housings), as well as aerospace, rail transportation and other fields. It can process 3-20mm blind rivets to meet the needs of various industries for efficient and precise riveting.
